Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is a powerful and reliable vehicle with simple operation and flexible steering. With a maximum traction of 3 tons and a low center of gravity design for stability, it also features a spacious driver's platform for comfortable standing. Additionally, the infinite variable speed drive function on the control handle, and the convenient pin-type hitch, make it easy to connect trailers and customize attachments based on work conditions.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Identification | 1.1 | Brand | VLIFT | |
| 1.2 | Product Model | Z-J30 | ||
| 1.3 | Power supply | Electric | ||
| 1.4 | Operating type | Standing | ||
| 1.5 | Max traction weight | Q(kg) | 3000 | |
| 1.6 | Rated pulling force | F(N) | 800 | |
| 1.7 | Wheelbase | y(mm) | 900 | |
| Weight | 2.1 | Truck weight（with battery） | kg | 610 |
| 2.2 | Battery weight | kg | 110 | |
| Tyre | 3.1 | Tire type,Drive wheel/Bearing wheel | PU | |
| 3.2 | Sizes of drive wheel（diameter×width） | mm | Φ250×85 | |
| 3.3 | Sizes of bearing wheel（diameter×width） | mm | Φ210×85 | |
| 3.4 | Drive wheel/bearing wheel number（×=Drive wheel） | mm | 1×/2 | |
| 3.5 | Front gauge | b10（mm） | 743 | |
| Dimensions | 4.1 | Overall height | h1（mm） | 1320 |
| 4.2 | Height of tiller in drive position | h2（mm） | 1300 | |
| 4.3 | Hook height | h3（mm） | 280/330 | |
| 4.4 | Overall length | l1（mm） | 1500 | |
| 4.5 | Overall width | b1（mm） | 867 | |
| 4.6 | Ground clearance | m1（mm） | 50 | |
| 4.7 | Turning radius | WA（mm） | 1180 | |
| Performance | 5.1 | Drive speed load/unload | km/h | 4-6 |
| 5.2 | Rated pulling force | N | 800 | |
| 5.3 | Max pulling force | N | 2000 | |
| 5.4 | Max gradeability load/unload | % | 3/10 | |
| 5.5 | Brake type | Electromagnetic | ||
| Motor | 6.1 | Drive motor rating S2 60min | kw | 1.5 |
| 6.2 | Charger (external) | V/A | 24/20 | |
| 6.3 | Battery voltage/nominal capacity | V/Ah | 2×12/160 | |
| Others | 7.1 | Type of drive control | AC | |
| 7.2 | Steering type | Mechanics | ||
| 7.3 | Noise level | dB（A） | <70 | |
| 7.4 | Type of trailer coupling | Latch |
Effortless Power, Reliable Efficiency
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is a reliable and efficient machinery designed to streamline warehouse operations. Its sturdy construction and ergonomic design ensure maximum operator comfort and productivity. With its hassle-free maintenance, this tow tractor is the ideal solution for busy industrial environments.
● Efficient
● Durable
● Smooth
● High-Quality

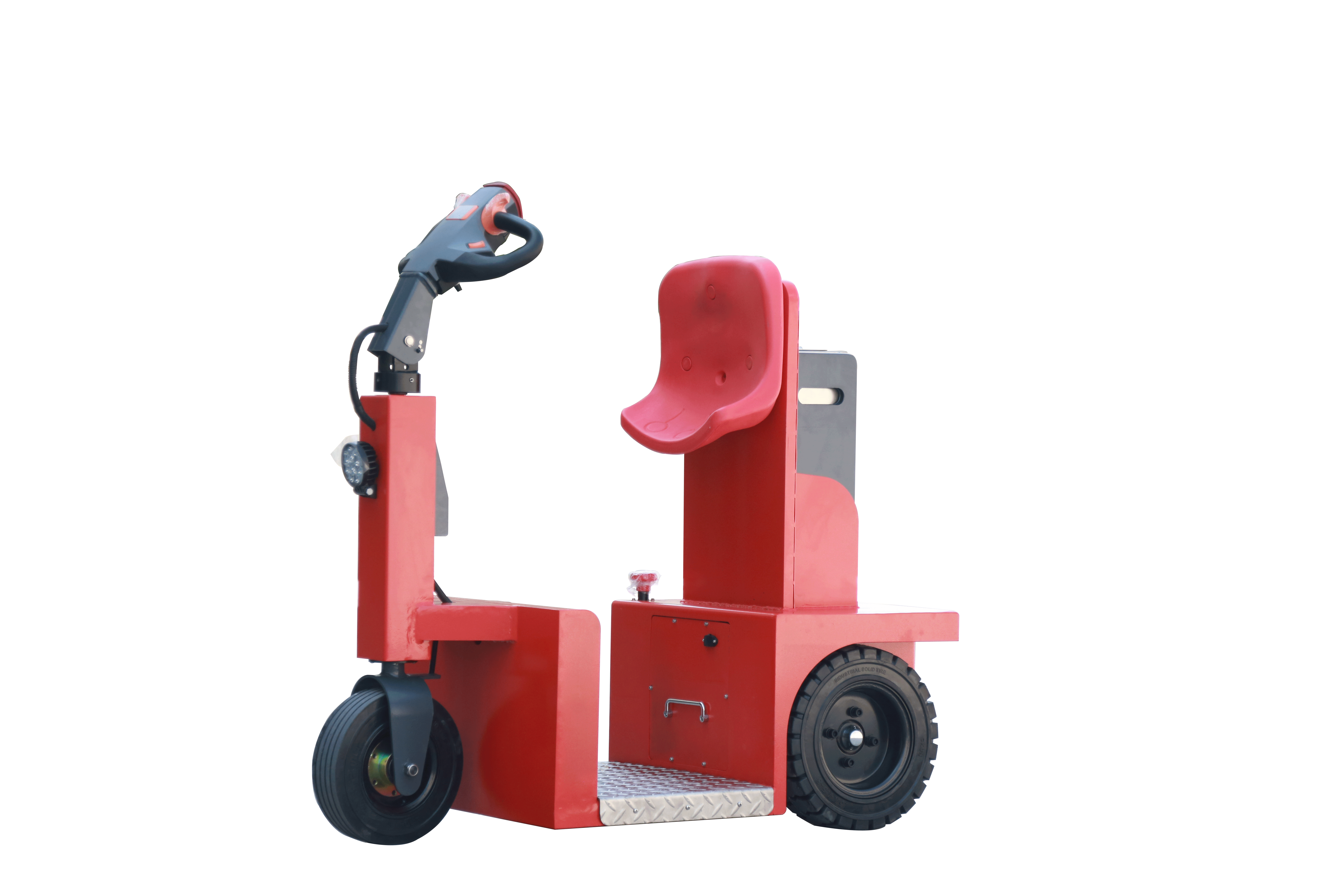

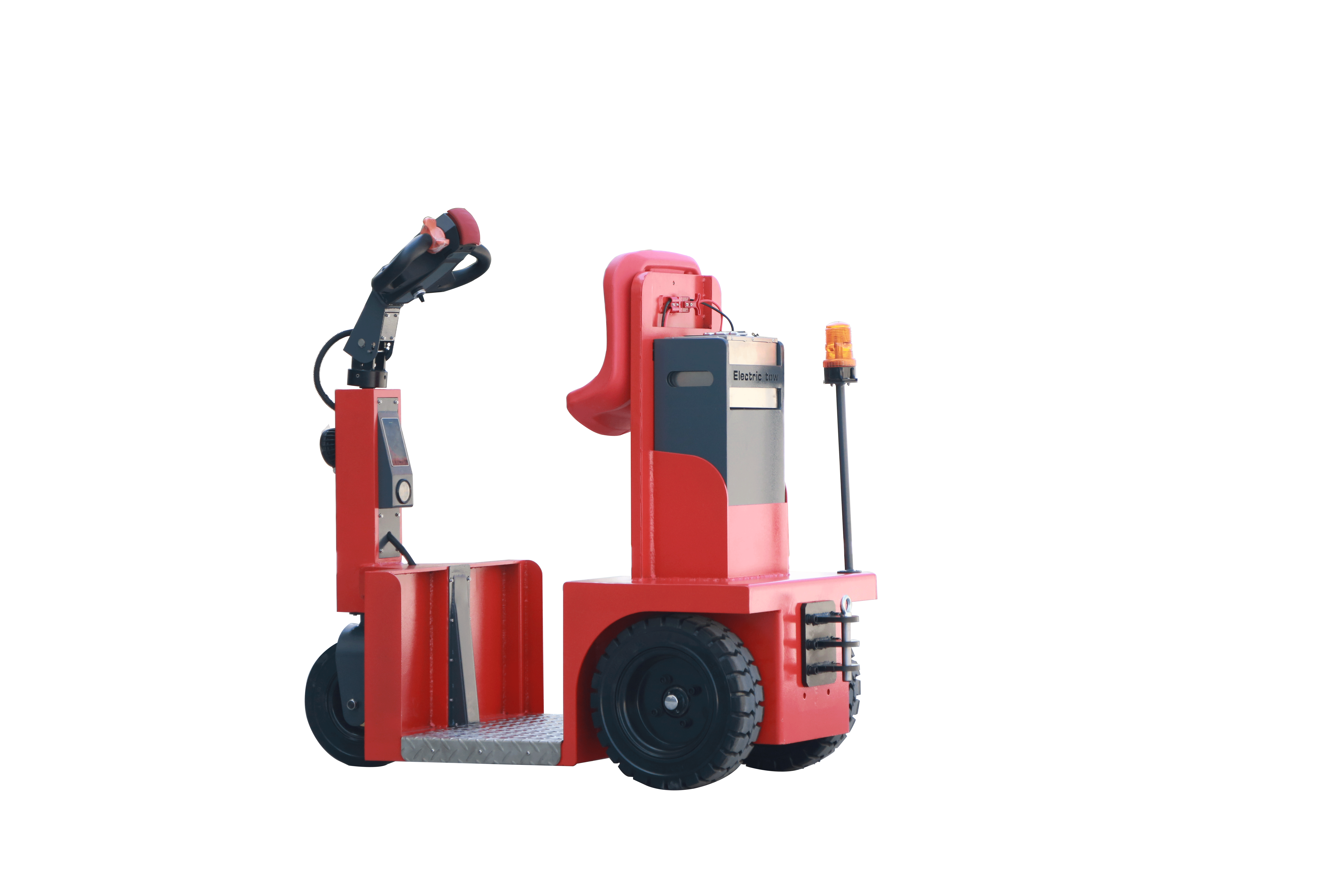

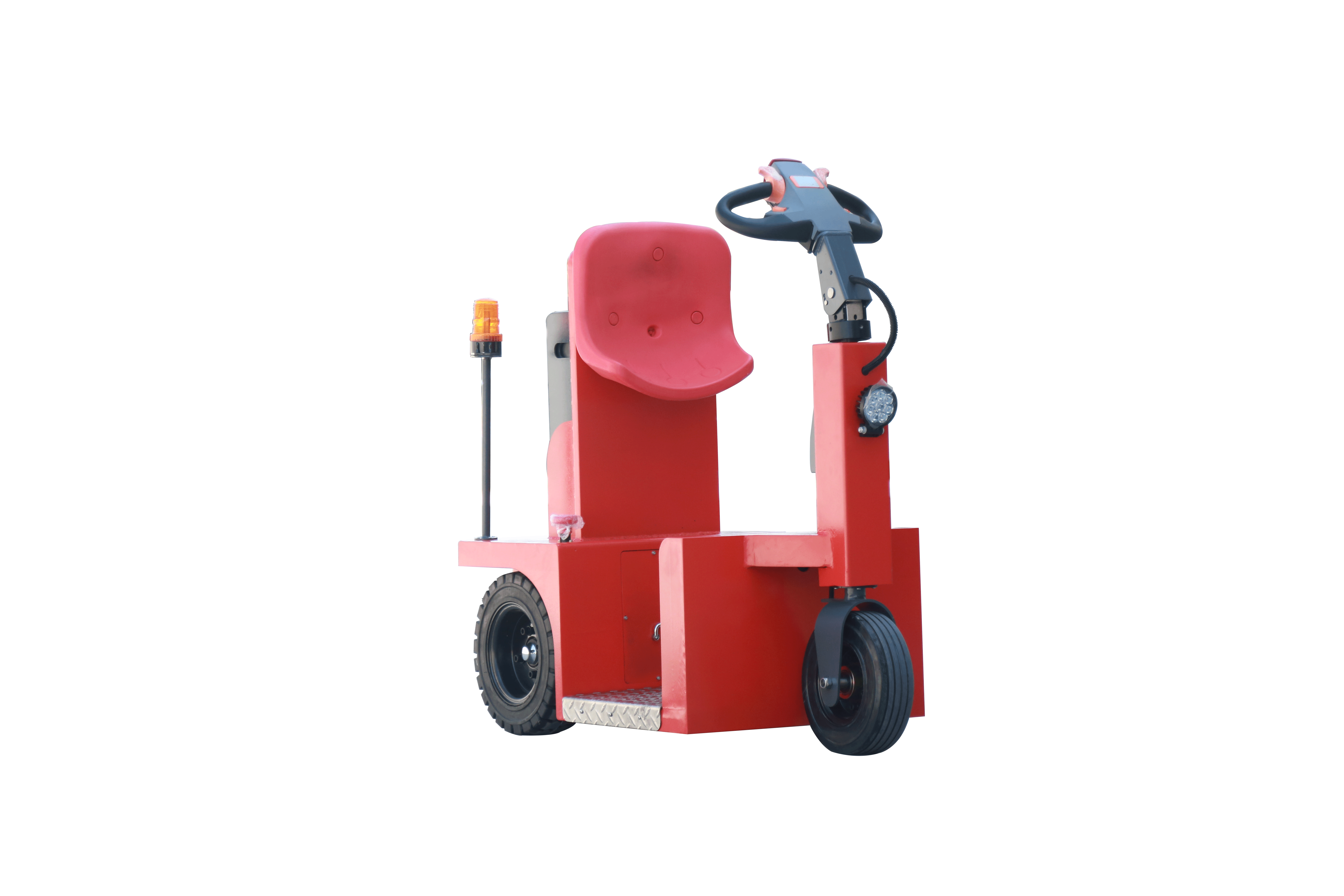

Product Display
carousel-2
carousel-5
carousel-7
Efficient, Reliable, Economical, Versatile
Efficiency
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 offers unparalleled reliability and efficiency with its cutting-edge design and advanced technology.
Cost-effectiveness
Boasting a high-quality maintenance-free battery, this tow tractor eliminates the need for costly repairs and downtime.
Compact
With its compact size, the Z-J30 is the ideal solution for streamlining material handling processes in various industries.
Powerful performance
The Z-J30 tow tractor delivers powerful performance, ensuring continuous operations and optimal productivity.
Effortless Powerhouse for Efficiency
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is equipped with a powerful battery that requires no maintenance, ensuring reliability and convenience for users. With its standing design, operators can easily maneuver through tight spaces and navigate smoothly around corners. The product's durable structure and high towing capacity make it a valuable asset for transporting heavy loads in industrial environments.
◎ Durable
◎ Comfortable
◎ Convenient
Application Scenario
Warehouse Transport Efficiency
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is ideal for efficiently transporting heavy loads within warehouses, ensuring seamless operations and increased productivity.
Manufacturing Plant Workhorse
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is a reliable workhorse in manufacturing plants, effortlessly moving heavy materials and equipment to different areas for streamlined production processes.
Distribution Center Load Mover
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is a powerhouse in distribution centers, providing a maintenance-free solution for transporting heavy loads across the facility with ease.
Industrial Tow Vehicle Solution
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 offers a convenient and reliable solution for industrial facilities seeking a durable and efficient tow vehicle for transporting heavy items effortlessly throughout the premises.
Material Introduction
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is constructed with a durable frame made of high-quality steel, providing exceptional strength and stability. The battery used in this tow tractor is maintenance-free, ensuring long-lasting performance and reliability. Additionally, the industrial-grade wheels are designed to withstand heavy usage, making it ideal for demanding work environments.
◎ Heavy-duty Steel Frame
◎ Sealed Battery Compartment
◎ High-Quality and Durable Materials
FAQ
1
What is a Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30?
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is a type of tow tractor that is designed to transport heavy loads in industrial settings.
2
What makes the Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 different from other tow tractors?
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is unique because it features a maintenance-free battery, which eliminates the need for regular maintenance and upkeep.
3
In what type of scenarios is the Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 commonly used?
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is commonly used in warehouses, manufacturing facilities, and other industrial settings where heavy loads need to be transported efficiently.
4
How much weight can the Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 handle?
The Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is capable of handling loads up to [insert weight limit here] pounds.
5
How long does the battery of the Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 last?
The battery of the Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 can last for [insert battery life estimate here] hours on a full charge, depending on usage.
6
Is the Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 easy to operate?
Yes, the Maintenance-Free Battery Standing Vlift Tow Tractor - Z-J30 is designed to be user-friendly and easy to operate, making it ideal for workers of all skill levels.
