Efficient, durable, maneuverable, powerful
The VLIFT 1.5 ton lithium battery electric stacker is a game-changer for warehouse operations, offering maximum efficiency and improved productivity. This fully electric pallet stacker is designed with a sleek and compact shape, making it perfect for navigating narrow aisles and tight storage spaces. With its durable construction and powerful performance, this electric stacker forklift is a must-have for businesses looking to streamline their material handling operations.
● Versatile
● Efficient
● Streamlined
● Reliable
specification
Characteristics | |||
1.1 | Model | TS15i | |
1.2 | Drive unit | Electric/Manual | |
1.3 | Operator type | Pedestrian | |
1.4 | Load capacity | Q (kg) | 1500 |
1.5 | Load center | c (mm) | 500 |
1.6 | Wheelbase | y(mm) | 1277 |
Weights | |||
2.1 | Service weight (Incl. battery) | kg | 330/405/415 |
Wheels, Chassis | |||
3.1 | Tyre type | PU/ PU | |
3.2 | driving wheel size | mm | 180x53 |
3.3 | loading wheel size | mm | 80x60 |
3.4 | balance wheel size | mm | 180x50 |
3.5 | wheel quantity | mm | 1x+2/4 |
Dimensions | |||
4.1 | Height, mast lowered | h1 (mm) | 2155/1905/2155 |
4.2 | Free lift height | h2 (mm) | / |
4.3 | Lift height | h3 (mm) | 1600/2500/3000 |
4.4 | Height, mast extended | h4 (mm) | 2225/3125/3625 |
4.5 | Height of tiller arm in operating position, min/ max | h14(mm) | 573-1263 |
4.6 | Fork height, lowered | h13 (mm) | 90 |
4.7 | Overall length | l1 (mm) | 1665 |
4.8 | Overall width | b1/ b2 (mm) | 682 |
4.9 | Fork dimensions | s/ e/ l (mm) | 1133*160*53 |
4.10 | Fork carriage width | b5 (mm) | 560 |
4.11 | Ground clearance | m2 (mm) | 35 |
4.12 | Aisle width for pallets 1000x1200 crossways | Ast(mm) | 1980 |
4.13 | Aisle width for pallets 800x1200 crossways | Ast(mm) | 1880 |
4.14 | Outer turning radius | Wa/(mm) | 1436 |
Performance | |||
5.1 | Travel speed, laden/ unladen | km/ h | 4.0/4.5 |
5.2 | Lifting speed, laden/ unladen | m/s | 0.08/0.10 |
5.3 | Lowering speed, laden/ unladen | m/s | 0.10/0.11 |
5.4 | Maximum gradeability, laden/ unladen | ° | 6/16 |
Drive | |||
6.1 | Drive motor rating | kw | 0.75 |
6.2 | Lift motor rating | kw | 1.2 |
6.3 | Battery voltage/ rated capacity | V/Ah | 48/20 lith |
Others | |||
7.1 | Drive and control type | VLIFT | |
7.2 | service brake | ![]() ![]() | ![]() |
7.3 | Parking brake | Electromagnetic brake |

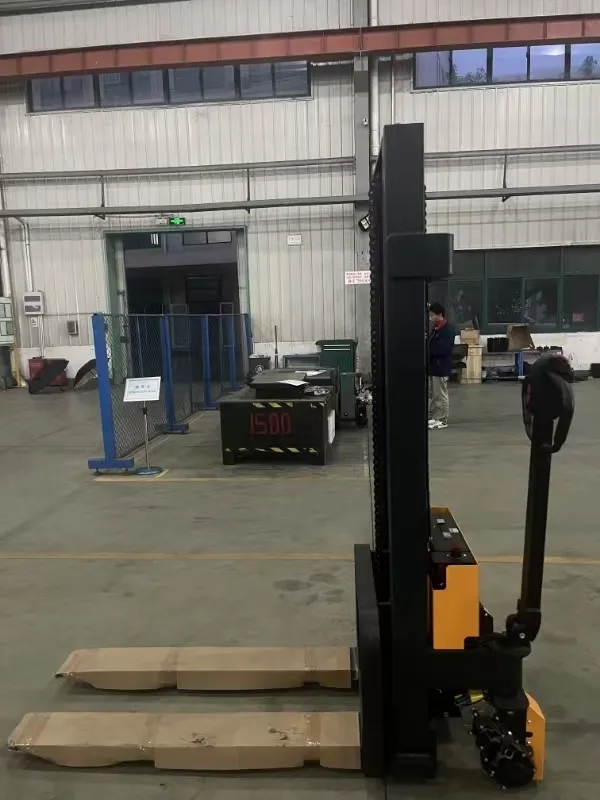

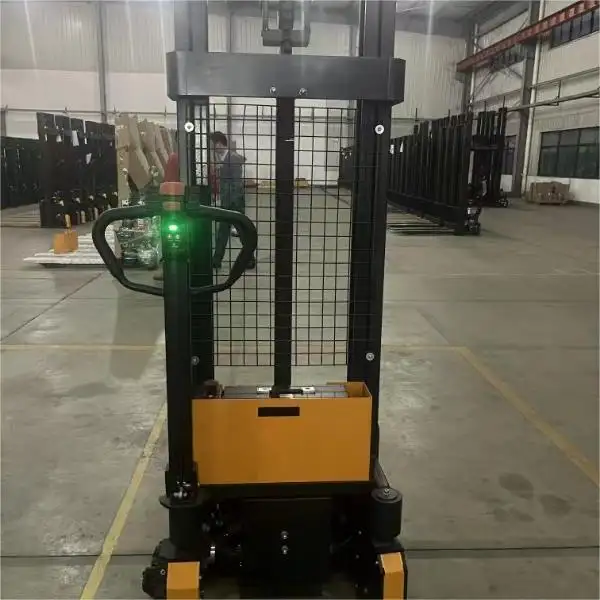

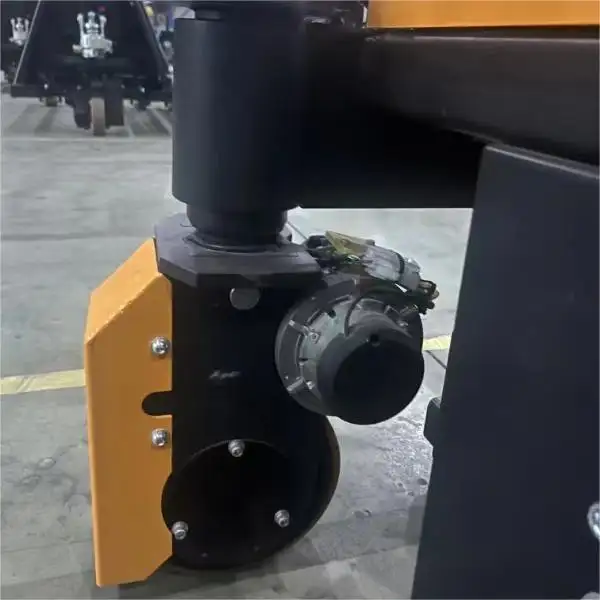

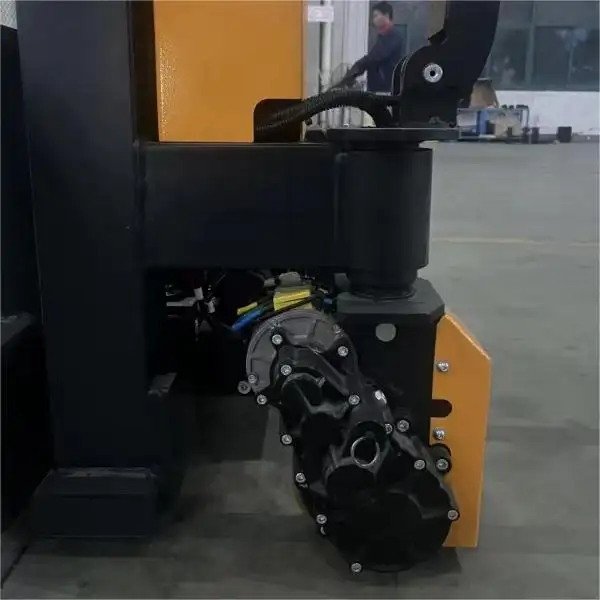

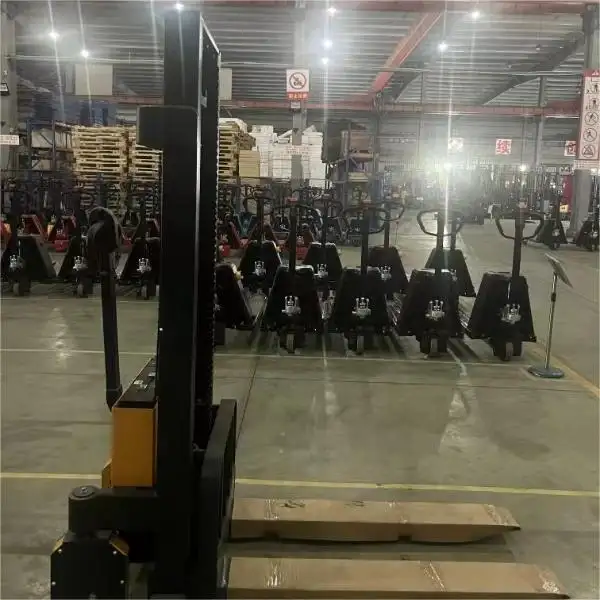

Product Display
Efficient and Versatile Electric Stacker
The VLIFT 1.5 ton lithium battery electric stacker is a versatile and efficient electric stacker forklift that is perfect for material handling in various industrial environments. With its powerful lithium battery, this electric pallet jack stacker offers extended operation time and quick recharging for enhanced productivity. Its fully electric pallet stacker function attributes enable smooth and precise lifting, lowering, and transporting of heavy loads, while its durable and compact structure ensures maneuverability in tight spaces.
◎ Powerful
◎ Eco-friendly
◎ Convenient
Material Introduction
The VLIFT 1.5 ton lithium battery electric stacker is crafted from high-quality materials to ensure durability and reliability. The frame and components are constructed from sturdy steel for maximum strength and stability, making it suitable for heavy-duty use in industrial settings. The electric stacker forklift is equipped with a lithium battery, providing long-lasting power and efficiency for versatile tasks, making it an ideal choice for those in need of a fully electric pallet stacker solution.
◎ VLIFT 1.5 ton lithium battery electric stacker material introduction
◎ VLIFT 1.5 ton lithium battery electric stacker material introduction
◎ VLIFT 1.5 ton lithium battery electric stacker material introduction
FAQ
Company Advantages
· VLIFT electric stacker is designed because we get inspired by the industrial trends.
· The quality and performance of this product are backed up by qualified staff and technical knowledge.
· In the industry, the domestic market share of Shanghai Vlift Equipment Co., Ltd. has always topped the list.
Company Features
· Shanghai Vlift Equipment Co., Ltd. is a company famous for electric stacker manufacturing. We have created a series of products to meet the needs of our customers.
· VLIFT always continues to develop its technology.
· We ensure our impact on the environment is minimized when achieving our business growth. We ask our staff to conduct all activities in a sustainable manner.
Application of the Product
VLIFT's electric stacker is widely used in multiple industries and fields.
In the early stage, we conduct a communication survey to gain an in-depth understanding of the customer's problems. Therefore, we can develop solutions that best suit the customers based on the results of the communication survey.
