Product details of the full electric stacker
Product Information
The manufacture of VLIFT full electric stacker is based on the production technology, which is an international leading level. Strict testing: its current performance has been tested by third parties. It is also ready to be tested by users and will be continuously updated. Always put customer first is kept in each staff of VLIFT.
specification
| 1.1 | Manufacturer | VLIFT | |
| 1.2 | Model designation | VQE15S | |
| 1.3 | Drive unit | Battery | |
| 1.4 | Operator type | Standing | |
| 1.5 | Load capacity | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 600 |
| 1.7 | Wheelbase | y (mm) | 1395 |
| Weights | |||
| 2.1 | Service weight | kg | 1865 |
| 2.2 | Axle loading, fork advanced,unladen driving side/loading side | kg | 1150/715 |
| 2.3 | Axle loading, fork retracted,unladen driving side/loading side | kg | 1250/615 |
| 2.4 | Axle loading, fork advanced, laden driving side/loading side | kg | 310/3055 |
| 2.5 | Axle loading, fork retracted, laden driving side/loading side | kg | 1075/2290 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | PU | |
| 3.2 | Tyre size, driving wheels | (mm) | Φ260x105 |
| 3.3 | Tyre size, loading wheels | (mm) | Φ102x73 |
| 3.4 | Wheels, number front/ rear (x=drive wheels) | (mm) | 1x2/ 4 |
| 3.5 | Track width, front, driving side | (mm) | 0 |
| 3.6 | Track width, rear, loading side | (mm) | 1000 |
| Dimensions | |||
| 4.1 | Mast/ fork carriage tilt, forward/ backward | α/ β (°) | 2/ 4 |
| 4.2 | Height, mast lowered | (mm) | 2390 |
| 4.3 | Free lift | (mm) | 0 |
| 4.4 | Lift height | (mm) | 3600 |
| 4.5 | Height, mast extended | (mm) | 4560 |
| 4.6 | Height of wheel arms | (mm) | 135 |
| 4.7 | Overall length | (mm) | 2340 |
| 4.8 | Length to face of forks | (mm) | 1270 |
| 4.9 | Overall width | (mm) | 850/1100 |
| 4.10 | Fork dimensions | (mm) | 40×100×1070 |
| 4.11 | Fork carriage width | (mm) | 800 |
| 4.12 | Distance between fork-arms | (mm) | 200-780 |
| 4.13 | Distance between wheel arms/laoding surfaces | (mm) | 900 |
| 4.14 | Reach distance | (mm) | 590 |
| 4.15 | Ground clearance, laden, below mast | (mm) | 70 |
| 4.16 | The Min. ground clearance of frame | (mm) | 70 |
| 4.17 | Aisle width, 1000×1200 pallet crossways | (mm) | 2795 |
| 4.18 | Aisle width, 800×1200 pallet lengthways | (mm) | 2585 |
| 4.19 | Turning radius | (mm) | 1690 |
| 4.20 | Length across wheel arms(exclusive fork) | (mm) | 1820 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 5.5/6 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.11/0.14 |
| 5.3 | Reach speed, laden/ unladen | m/ s | 0.24/0.24 |
| 5.4 | Lowering speed, laden/ unladen | m/ s | 0.12/0.12 |
| 5.5 | Max.gradeability, laden/ unladen | % | 6/10 |
| 5.6 | Service brake | Electromagnetic | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 3.3 |
| 6.2 | Lift motor rating at S3 15% | kW | 3 |
| 6.3 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/280 |
| 6.4 | Battery weight | kg | 230 |
| Others | |||
| 7.1 | Type of drive control | AC | |
| 7.2 | Sound level at operator's ear | dB (A) | 74 |
Streamlined, durable, efficient solution
The VLIFT 1.5T Electric Reach Stacker is an efficient warehouse solution, offering customers the convenience of a fully electric pallet stacker. Its sleek and ergonomic design ensures easy maneuverability in tight spaces, making it the perfect electric stacker forklift for busy work environments. With its reliable performance and durable build, this electric pallet jack stacker is a must-have for any warehouse operation.
● VLIFT 1.5T Electric Reach Stacker - Durable and Reliable
● VLIFT 1.5T Electric Reach Stacker - Smooth Maneuverability
● VLIFT 1.5T Electric Reach Stacker - Efficient Handling
● VLIFT 1.5T Electric Reach Stacker - Perfect for Any Warehouse

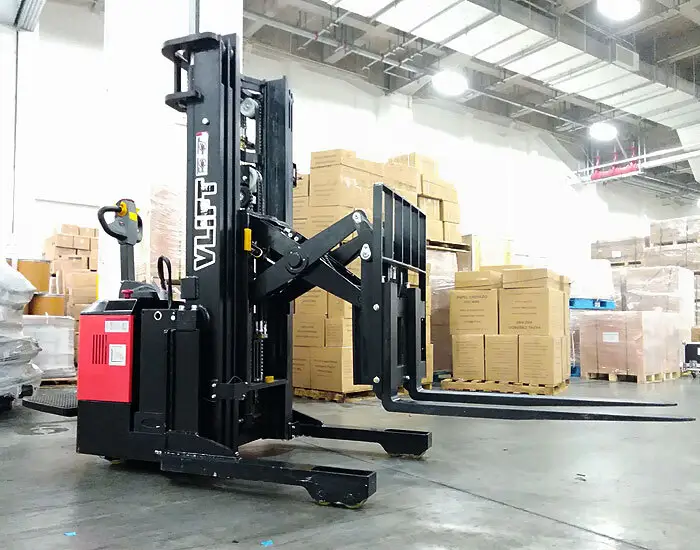

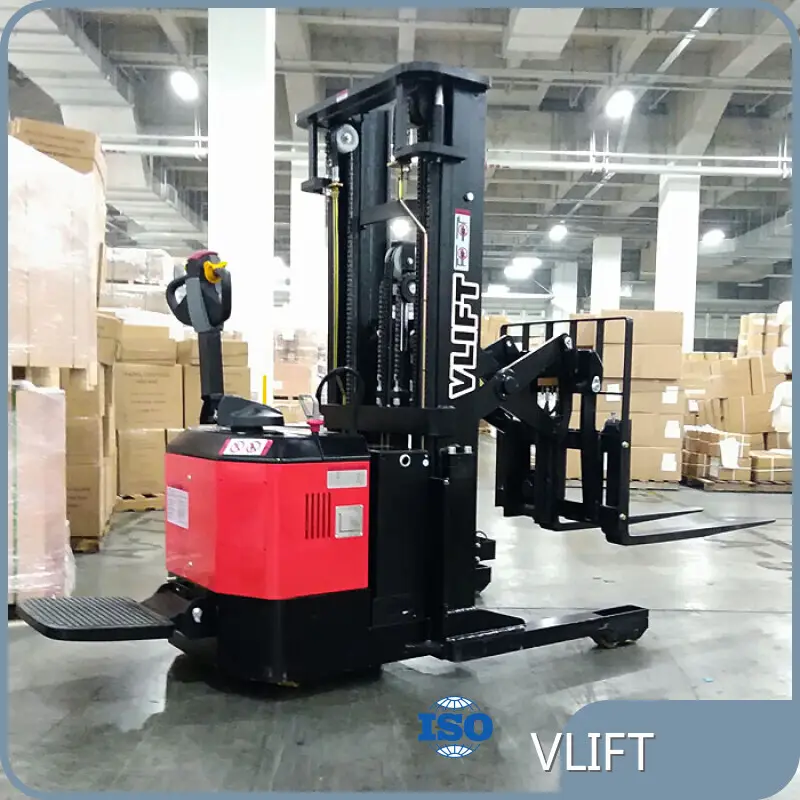

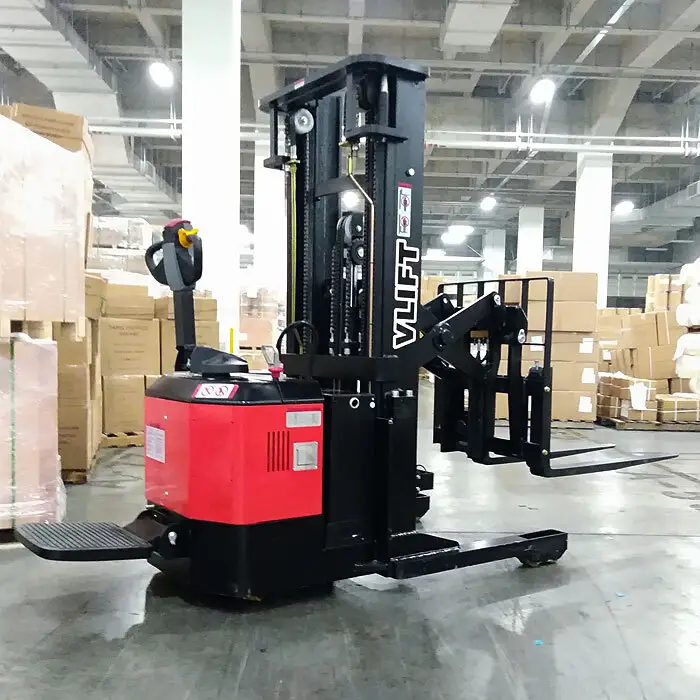

Product Display
Streamlined, Powerful, Versatile, Reliable
Streamlined Efficiency for Warehouses
The VLIFT 1.5T Electric Reach Stacker is a powerful and versatile electric stacker forklift designed to efficiently handle warehouse tasks. Featuring a fully electric pallet stacker with a 1.5-ton capacity, it ensures smooth and precise material handling, making it an ideal electric pallet jack stacker for any warehouse operation. Its compact and ergonomic design, coupled with its advanced functionality, makes it a valuable asset for boosting productivity and streamlining warehouse processes.
◎ Adjustable Forks - Versatile
◎ Compact Design - Maneuverable
◎ Smooth Lowering Control - Precise

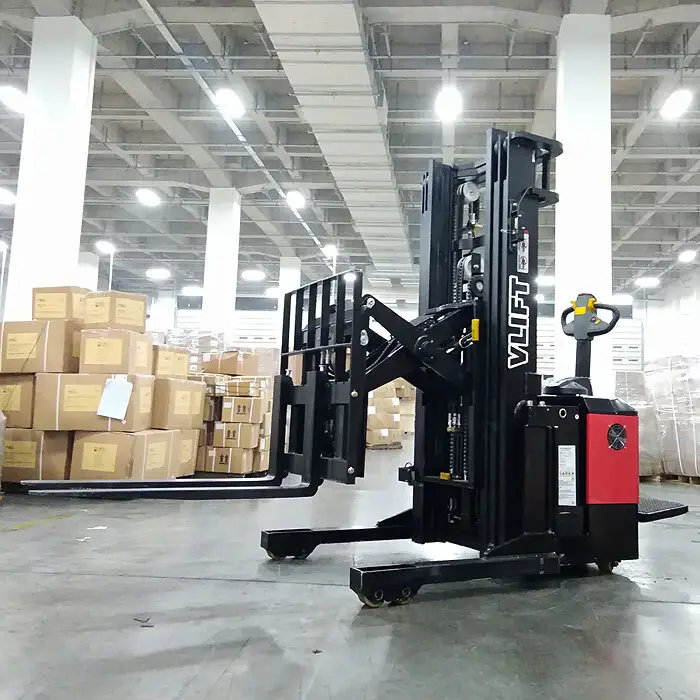

Application Scenario
Material Introduction
The VLIFT 1.5T Electric Reach Stacker is constructed using high-quality, durable materials to ensure long-lasting performance and reliability. The frame and body of the electric stacker forklift are made of sturdy steel, providing a solid structure for heavy-duty lifting and stacking tasks in warehouse environments. The electric pallet jack stacker features heavy-duty hydraulic components and fully electric pallet stacker technology, making it an efficient and reliable solution for improving warehouse productivity.
◎ VLIFT 1.5T Electric Reach Stacker
◎ VLIFT 1.5T Electric Reach Stacker
◎ VLIFT 1.5T Electric Reach Stacker
