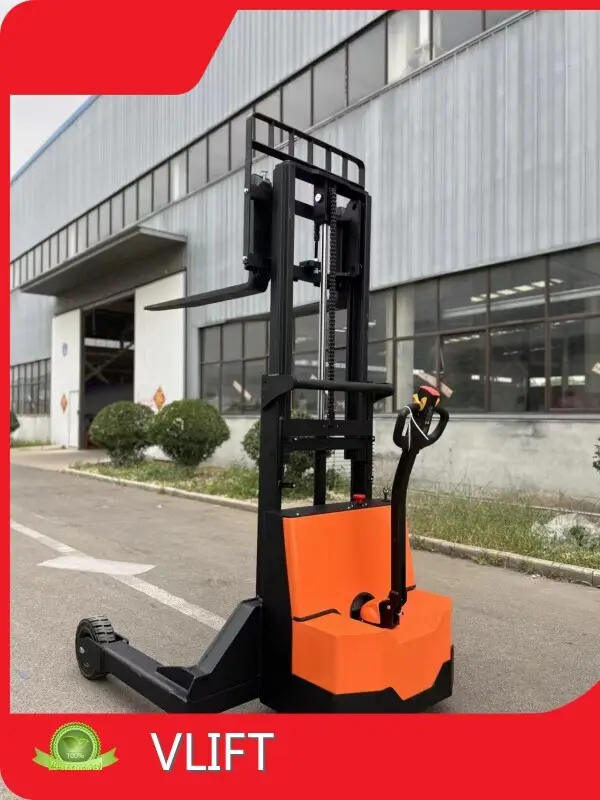

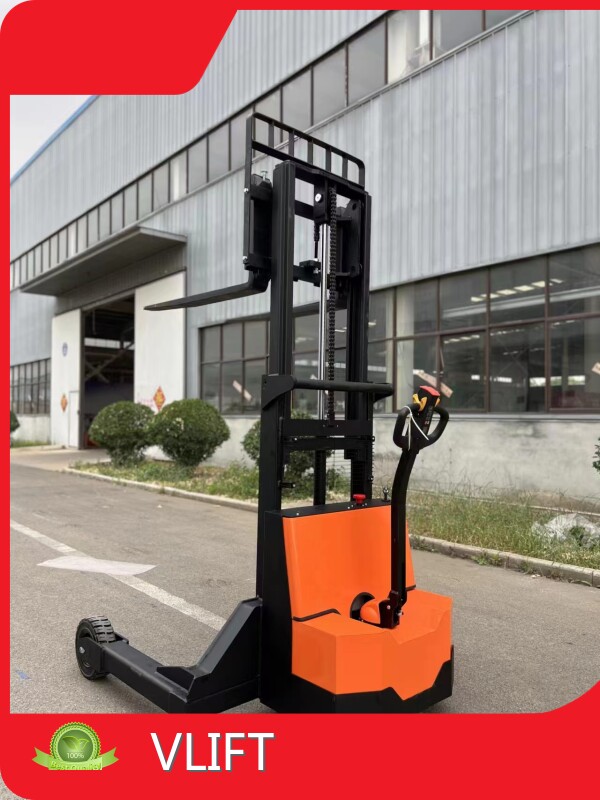

Efficient Electric Stacker: Streamlined Material Handling
Efficiently handle materials with the VLIFT 1.5T 1.6m Electric Stacker forklift, featuring AC drive unit and mechanical steering type for smooth operation. With a rated capacity of 1500kg and a lift height of 1600mm, this fully electric pallet stacker is designed for optimal performance. The 1070*100*40mm fork size and 1 year/2000 hours warranty make it a reliable choice for your material handling needs.
● Reliable
● Heavy-duty
● Long-lasting
● Versatile
specification
| Characteristics | |||
| 1.1 | Manufacturer | VLIFT | |
| 1.2 | Model designation | VS15SH | |
| 1.3 | Drive unit | Battery | |
| 1.4 | Operator type | Pedestrian | |
| 1.5 | Load capacity | Q (kg) | 1500 |
| 1.5.1 | Mast lifting load capacity | Q1(kg) | -- |
| 1.5.2 | Fork lifting load capacity | Q2(kg) | -- |
| 1.6 | Load center distance | c (mm) | 500 |
| 1.8 | Load distance | x(mm) | 758 |
| 1.9 | Wheelbase | y (mm) | 1205 |
| Weights | |||
| 2.1 | Service weight (Incl. battery) | kg | 620 |
| 2.2 | Axle loading, laden operator/load side | kg | 720/ 1400 |
| 2.3 | Axle loading, unladen operator/load side | kg | 440/ 180 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | Solid | |
| 3.2 | Tyre size, operator side | mm | Ф210x70 |
| 3.3 | Tyre size, load side | mm | Ф298x102 |
| 3.4 | Balance wheels (dimensions) | -- | |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1x+ 2/ -- | |
| 3.6.1 | Driving wheelbase | b10(mm) | -- |
| 3.7.1 | Loading wheelbase | b11(mm) | 1424 |
| Dimensions | |||
| 4 | Height(h3+h13) | H(mm) | 1600 |
| 4.2 | Height, mast lowered | h1(mm) | 2110 |
| 4.3 | Free lift | h2(mm) | -- |
| 4.4 | Lift height | h3(mm) | 1520 |
| 4.5 | Height, mast extended | h4(mm) | 2108 |
| 4.6 | Fork lifting height | h5(mm) | -- |
| 4.9 | Height of tiller arm in operating position, min/ max | h14(mm) | 860/ 1270 |
| 4.15 | Fork height, lowered | h13(mm) | 62 |
| 4.19 | Overall length | l1(mm) | 1701 |
| 4.20 | Length to face of forks | l2(mm) | 635 |
| 4.21 | Overall width | b1/b2(mm) | 1578 |
| 4.22 | Fork dimensions | s/ e/ l(mm) | 40/ 100/ 1070 |
| 4.25 | Outside fork width, minimum/ maximum | b5(mm) | 200~780 |
| 4.32 | Ground clearance | (mm) | 22 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast(mm) | 2402 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast(mm) | 2402 |
| 4.35 | Outer turning radius | Wa(mm) | 1412 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 3.5/ 4.0 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.085/ 0.13 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.105/ 0.085 |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 3/10 |
| 5.10 | Service brake | Electromagnetic | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 0.75 |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 |
| 6.4 | Battery voltage/ rated capacity | V/ Ah | 48/ 65 |
| 6.5 | Battery weight (with box) | kg | 58 |
| 6.6 | Energy consumption values according to DIN EN 16796 | kWh/h | -- |
| 6.7 | Trans-shipment according to VDI 2198 | t/h | -- |
| 6.8 | Transit efficiency, based on VDI 2198 | t/kWh | -- |
| Others | |||
| 8.1 | Drive unit | AC | |
| 10.5 | Steering type | Mechanical | |
| 10.7 | Sound level at operator's ear | dB (A) | 74 |
| 15.1 | Charger output current | A | 10 |
Product Display
Efficient, Powerful, Versatile, Reliable
Efficient Electric Stacker Solution
The VLIFT 1.5T 1.6m Electric Stacker is a fully electric pallet stacker with an AC drive unit, ensuring efficient and powerful performance. It features a mechanical steering type for easy maneuverability and control, making it an ideal electric stacker forklift for material handling. With a rated capacity of 1500kg and a lift height of 1600mm, along with a 1-year or 2000-hour warranty, this electric pallet jack stacker offers reliable and safe operation, while its compact design, 1070*100*40mm fork size, 758mm load distance, and 1412mm turning radius provide added convenience and versatility for various material handling needs.
◎ Powerful
◎ Maneuverable
◎ Sturdy
Application Scenario
Material Introduction
The VLIFT 1.5T 1.6m Electric Stacker is a fully electric pallet stacker designed with a durable AC drive unit and mechanical steering for efficient material handling. With a rated capacity of 1500kg and a lift height of 1600mm, this electric stacker forklift features fork size of 1070*100*40mm, load distance of 758mm, load center of 500mm, and turning radius of 1412mm, making it ideal for various industrial applications. Additionally, it comes with a warranty of 1 year or 2000 hours, providing peace of mind for users.
◎ material introduction 1
◎ material introduction 2
◎ material introduction 3
