Efficient and Versatile Stacker

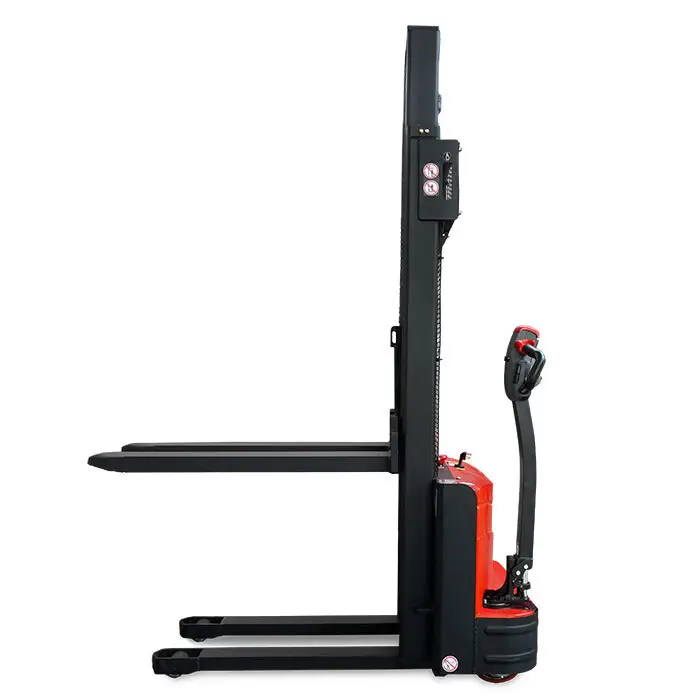

The VLIFT 1.5 ton Walkie electric stacker offers a lifting height of 3000mm, providing maximum efficiency in material handling tasks. Its compact and ergonomic design helps to improve maneuverability and ease of use in a variety of warehouse settings. The high-quality construction and reliable performance make it an essential tool for businesses looking to streamline their operations.
● Efficient and Powerful Lifting
● Compact and Ergonomic Design
● Durable Construction
● Sleek and Modern Style

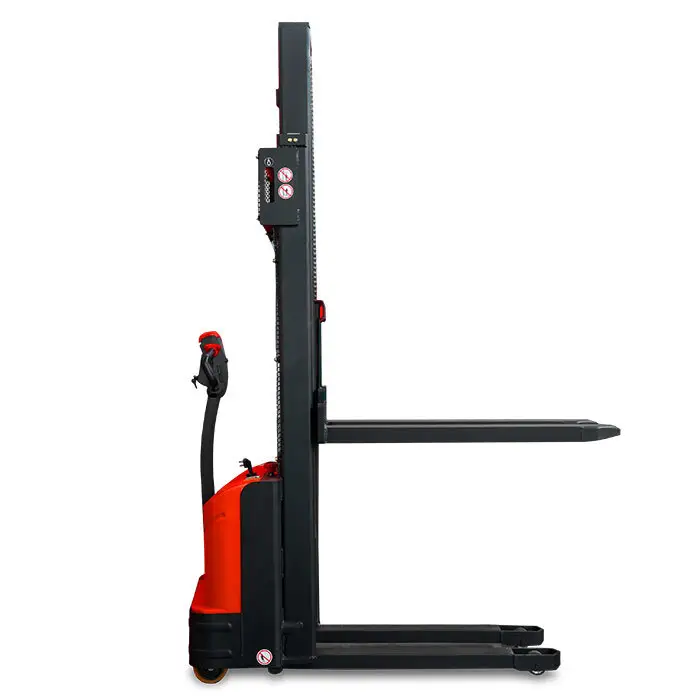

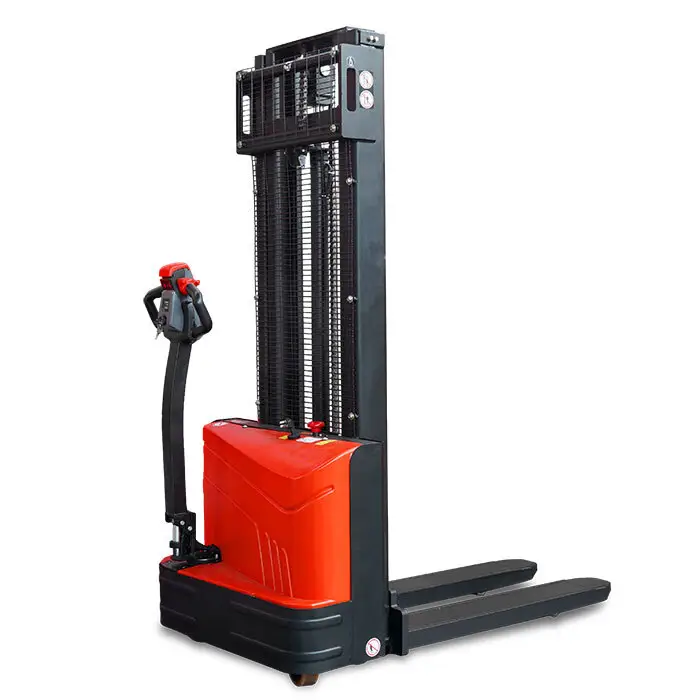

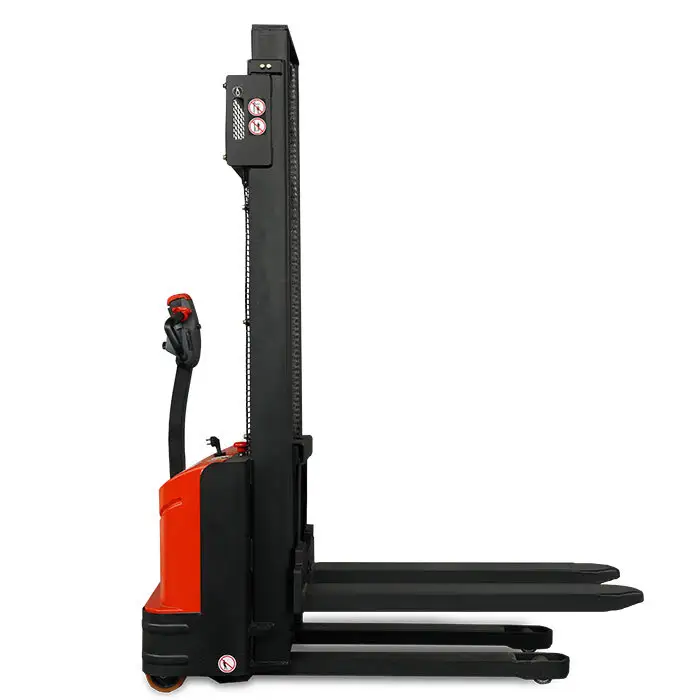

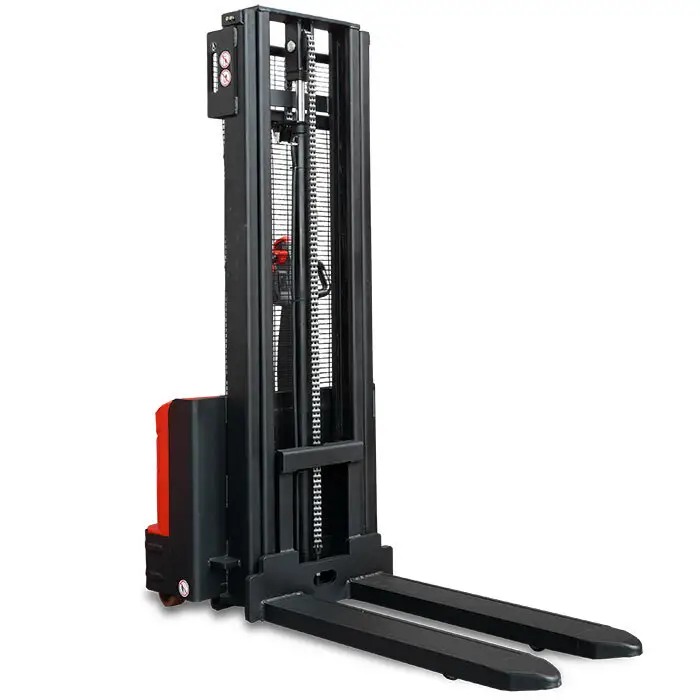

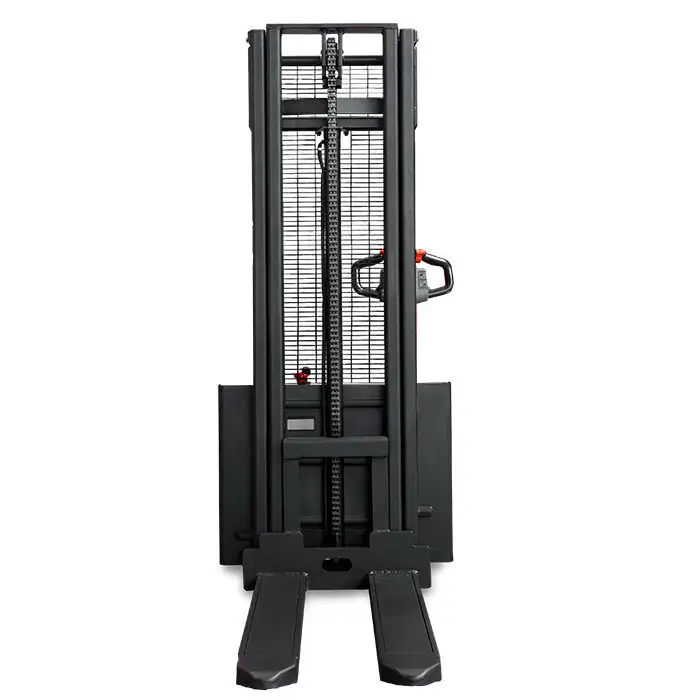

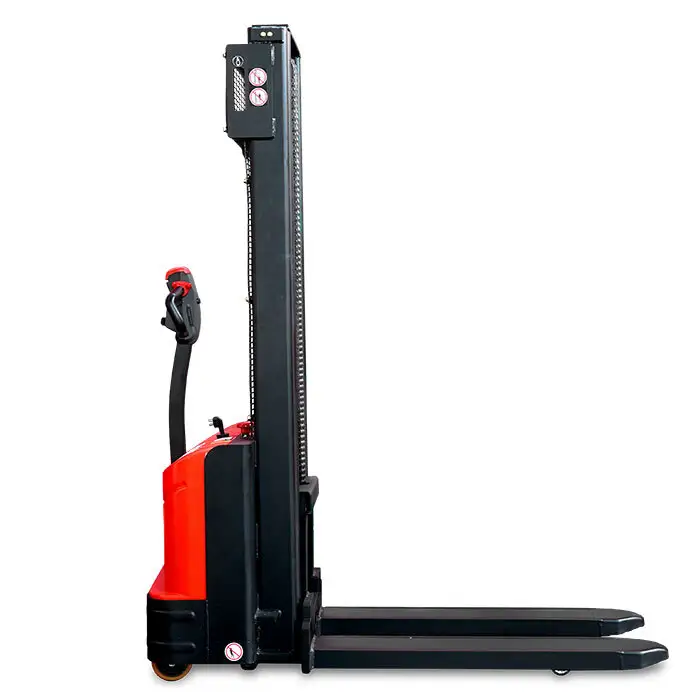

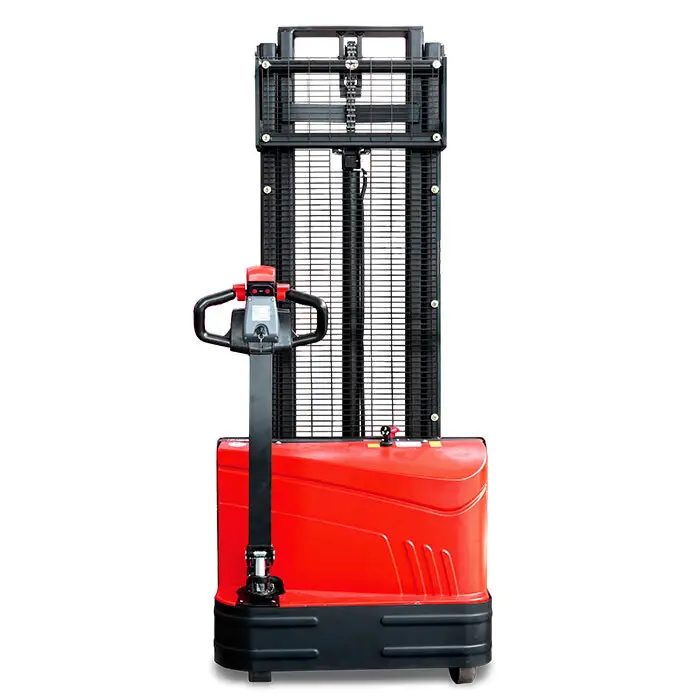

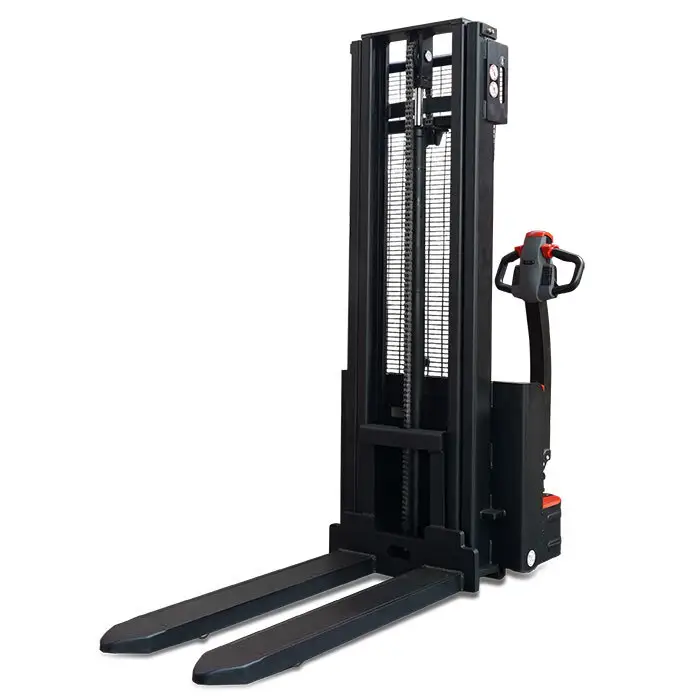

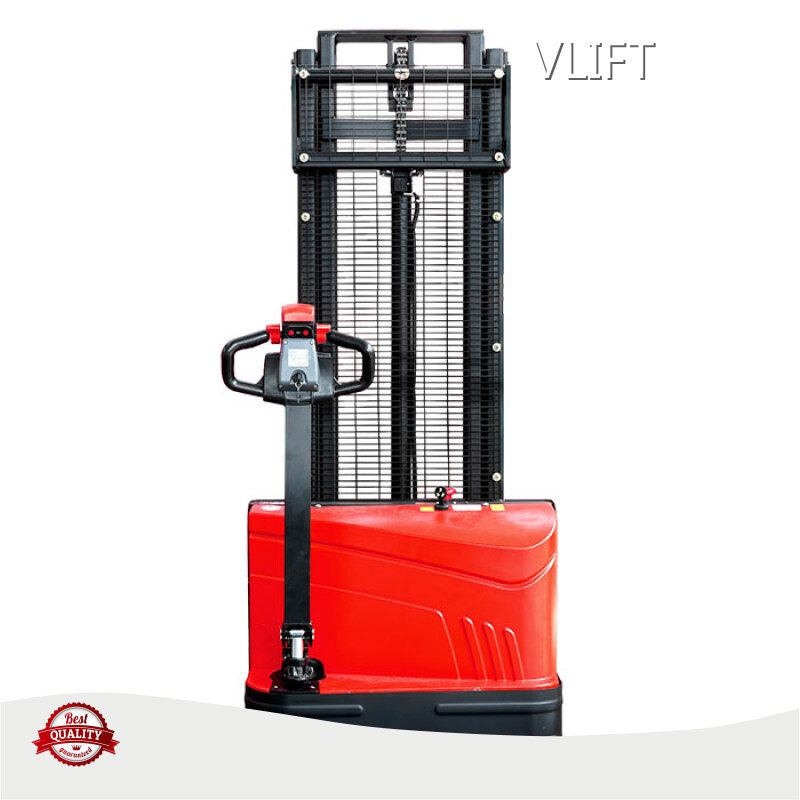

Product Display
Efficient and Versatile Electric Stacker
Effortless Vertical Material Handling
The VLIFT 1.5 ton Walkie electric stacker is designed with a lifting height of 3000mm, making it ideal for handling and stacking goods in warehouses and industrial settings. With core attributes such as a sturdy build and reliable lifting capacity, this stacker provides extended attributes like ease of maneuverability and ergonomic design for operator comfort. Its value attributes include efficiency in material handling and the ability to maximize storage space, while its product function attributes include smooth lifting and lowering operations for seamless productivity. Additionally, the stacker's own structure forms characteristics of durability and stability, ensuring long-term performance and safety in various work environments.
◎ Versatile
◎ Maneuverable
◎ Reliable
Product Specification
| Characteristics | |||
| 1.1 | Manufacturer | VLIFT | |
| 1.2 | Power | battery | |
| 1.4 | Model designation | VSD152 | |
| 1.5 | Operator type | Walkie | |
| 1.6 | Load capacity | (kg) | 1500 |
| 1.8 | Load center | (mm) | 500 |
| 1.9 | Load distance | (mm) | 801 |
| 1.10 | Wheelbase | (mm) | 1204 |
| Weights | |||
| 2.1 | Service weight (Incl. battery) | kg | 485 |
| 2.2 | Axle loading, laden operator/load side | kg | 715/ 1270 |
| 2.3 | Axle loading, unladen operator/load side | kg | 365/ 120 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | PU/ PU | |
| 3.2 | Tyre size, operator side | mm | Ф210x70 |
| 3.3 | Tyre size, load side | mm | Ф74x88 |
| 3.4 | Balance wheels (dimensions) | Ф130x55 | |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1x +1/2 | |
| 3.6 | Tread, operator side | (mm) | 623 |
| 3.7 | Tread, load side | (mm) | 400 |
| Dimensions | |||
| 4.1 | Height, mast lowered | (mm) | 2072 |
| 4.2 | Free lift | (mm) | 0 |
| 4.3 | Lift height | (mm) | 3000 |
| 4.4 | Height, mast extended | (mm) | 3537 |
| 4.5 | Height of tiller arm in operating position, min/ max | (mm) | 760/ 1140 |
| 4.6 | Fork height, lowered | (mm) | 90 |
| 4.7 | Overall length | (mm) | 1710 |
| 4.8 | Length to face of forks | (mm) | 560 |
| 4.9 | Overall width | (mm) | 890 |
| 4.10 | Fork dimensions | s/ e/ l (mm) | 60/ 170/ 1150 |
| 4.11 | Outside fork width, minimum/ maximum | (mm) | 680 |
| 4.12 | Ground clearance | (mm) | 23 |
| 4.13 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2280 |
| 4.14 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2210 |
| 4.15 | Outer turning radius | Wa (mm) | 1445 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 3.7/4.0 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.085/ 0.135 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.105/ 0.097 |
| 5.4 | Maximum gradeability, laden/ unladen S2 5 min. | % | 3/10 |
| 5.5 | Service brake | Electromagnetic | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 0.75 |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 |
| 6.3 | Battery voltage/ rated capacity (5h) | V/ Ah | 2x12/ 80 |
| 6.4 | Charger | A | 38 |
| Others | |||
| 7.1 | Type of drive control | DC | |
| 7.2 | Steering type | Mechanical | |
| 7.3 | Sound level at operator's ear | dB (A) | 74 |
Application Scenario
Material Introduction
The VLIFT 1.5 ton Walkie electric stacker is constructed using high-quality, durable materials to ensure long-lasting performance. The frame is made of sturdy steel to provide maximum stability and support while lifting heavy loads. The lifting mechanism is designed with precision engineering and utilizes heavy-duty components to ensure smooth and efficient operation, even when reaching the maximum lifting height of 3000mm.
◎ VLIFT 1.5 ton Walkie electric stacker lifting height 3000mm
◎ [Product 2]
◎ [Product 3]
