Stacker Manufacturer VLIFT - - VLIFT-1
Product details of the stacker manufacturer
Product Overview
The distinctive design of VLIFT stacker manufacturer comes from our professional design team. stacker manufacturer provides high reliability and superior performance at a low cost. By centering on quality of stacker manufacturer, Shanghai Vlift Equipment Co., Ltd. has won many long-term cooperation customers.
Product Information
After being improved greatly, VLIFT's stacker manufacturer is more advantageous in the following aspects.
Specification
| Characteristics | |||
| 1.1 | Manufacturer | VLIFT | |
| 1.2 | Model designation | VS20-20RAS | |
| 1.4 | Operator type | Rider stand | |
| 1.5 | Load capacity | (kg) | 2000 |
| 1.6 | Load center | (mm) | 600 |
| 1.8 | Load distance | (mm) | 693 |
| 1.9 | Wheelbase | (mm) | 1394 |
| Weights | |||
| 2.1 | Service weight (Incl. battery) | kg | 1370 |
| 2.2 | Axle loading, laden operator/load side | kg | 1100/ 2250 |
| 2.3 | Axle loading, unladen operator/load side | kg | 950/ 400 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | PU/ PU | |
| 3.2 | Tyre size, operator side | mm | Ф230x75 |
| 3.3 | Tyre size, load side | mm | Ф85x70 |
| 3.4 | Balance wheels (dimensions) | Ф130x60 | |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1x+ 2/ 4 | |
| 3.6 | Tread, operator side | (mm) | 634 |
| Dimensions | |||
| 4.2 | Height, mast lowered | (mm) | 1870 |
| 4.3 | Free lift | (mm) | 100 |
| 4.4 | Lift height | (mm) | 2700 |
| 4.5 | Height, mast extended | (mm) | 3165 |
| 4.9 | Height of tiller arm in operating position, min/ max | (mm) | 1150/ 1480 |
| 4.15 | Fork height, lowered | (mm) | 88 |
| 4.19 | Overall length | (mm) | 2030 |
| 4.20 | Length to face of forks | (mm) | 860 |
| 4.21 | Overall width | (mm) | 850 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 60/ 190/ 1150 |
| 4.25 | Outside fork width, minimum/ maximum | (mm) | 570/600/685 |
| 4.32 | Ground clearance | (mm) | 28 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2610/2971 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2580/2941 |
| 4.35 | Outer turning radius | Wa (mm) | 1738/2099 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 4.5/ 5.0 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.10/ 0.16 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.33/ 0.23 |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 6/ 12 |
| 5.10 | Service brake | Electromagnetic | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 1.6 |
| 6.2 | Lift motor rating at S3 15% | kW | 3 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 280 |
| 6.5 | Battery weight (with box) | kg | 240 |
| Others | |||

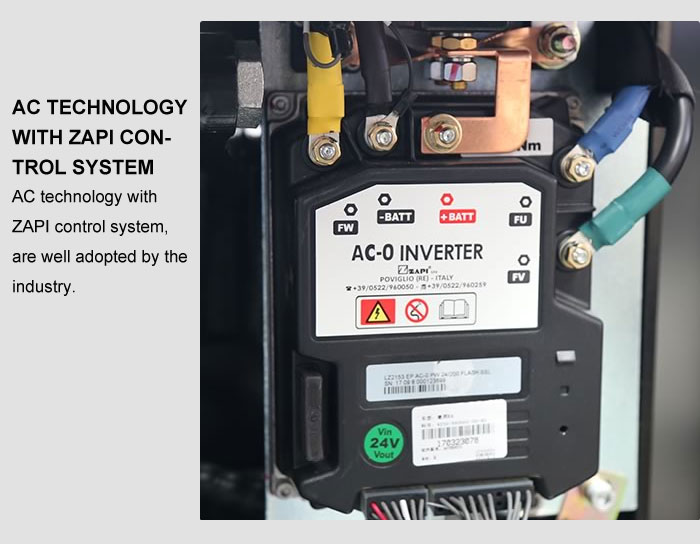

| 8.1 | Type of drive control | AC | |

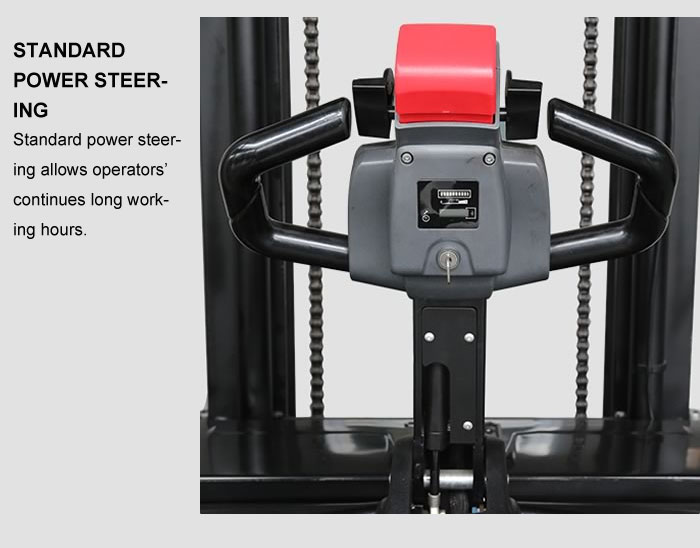

| 8.3 | Steering type | Electronic steering | |
| 8.4 | Sound level at operator's ear | dB (A) | 74 |
Effortless lifting power and efficiency

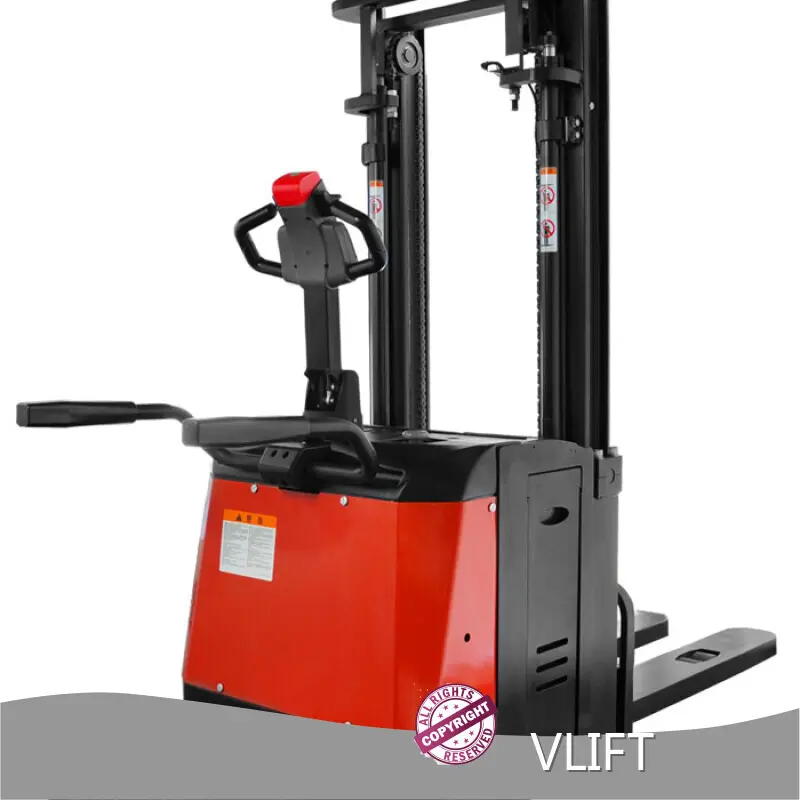

Experience the ultimate efficiency and power with our VLIFT 2 ton lead acid / lithium battery electric stacker, the perfect solution for efficient warehouse material handling. This electric pallet jack stacker offers quiet, smooth operation and a durable construction, making it ideal for heavy-duty industrial applications. With intuitive controls and a 2-ton lifting capacity, the VLIFT electric stacker forklift provides improved efficiency and maneuverability for any workplace.
● VLIFT 2-ton Electric Stacker
● VLIFT 2-ton Electric Stacker
● VLIFT 2-ton Electric Stacker
● VLIFT 2-ton Electric Stacker

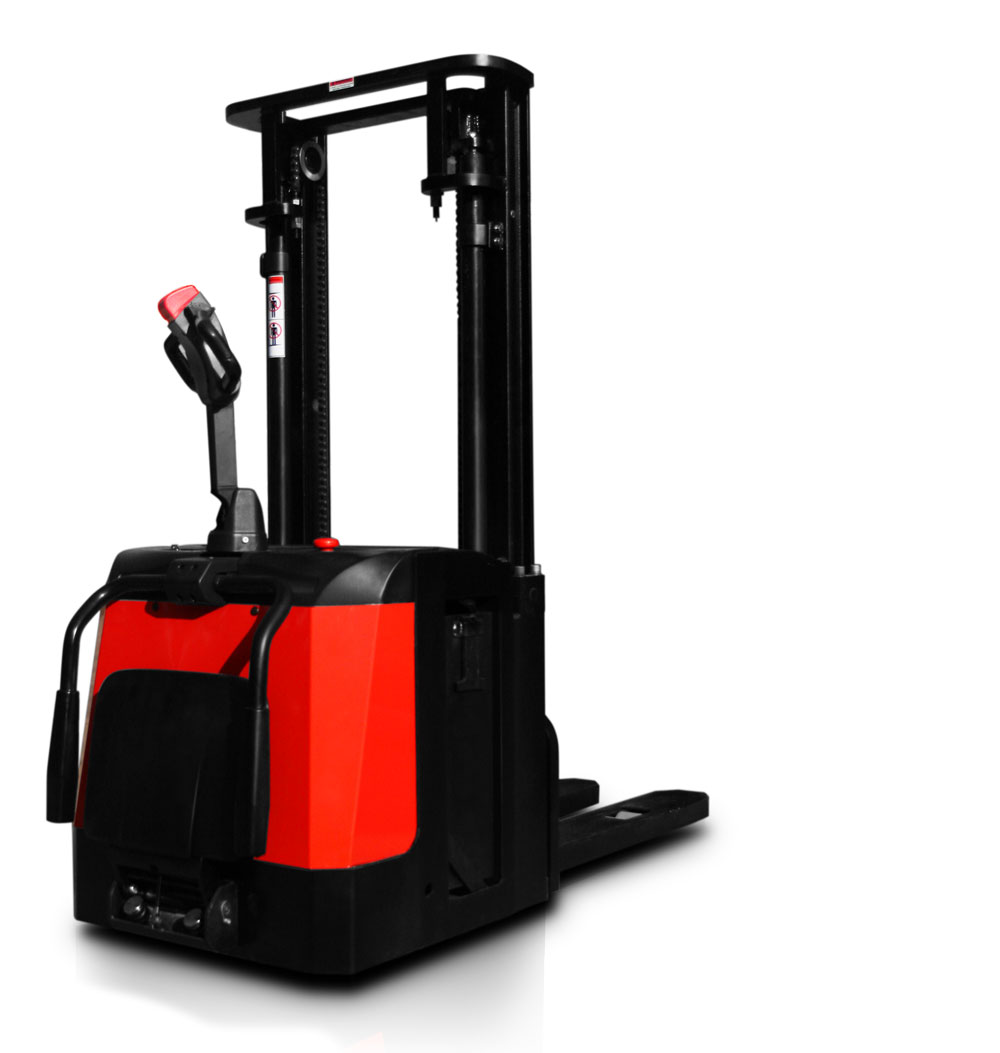

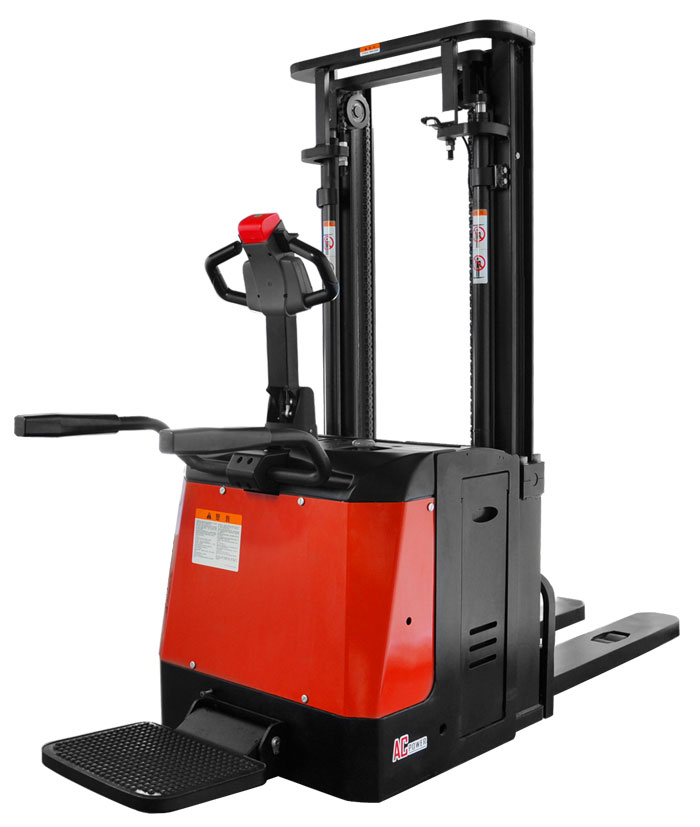

Product Display
Efficient, Versatile, Powerful, Reliable
Efficient, Powerful, Versatile, Reliable
Experience the ultimate efficiency and power with the VLIFT 2 ton electric stacker forklift, designed for versatile and reliable performance. With extended battery life and a lifting capacity of 2 tons, this fully electric pallet stacker is suitable for heavy-duty industrial applications. Its core attributes include durable construction, quiet operation, and easy maneuverability, making it the perfect electric pallet jack stacker for any warehouse or industrial setting.
◎ Unmatched Maneuverability
◎ Easy Operation
◎ Reliable Performance
Application Scenario
Material Introduction
The VLIFT 2 ton lead acid / lithium battery electric stacker is constructed with high-quality materials, ensuring its reliability and longevity. The frame and chassis of this electric stacker forklift are made of robust steel, providing excellent strength and stability for heavy lifting tasks. Additionally, the electric pallet jack stacker features sturdy forks and a reliable lifting mechanism, making it a dependable and fully electric pallet stacker for various warehouse and industrial applications. Whether it's for warehouse pallet handling, distribution center operations, or industrial material transport, the VLIFT electric stacker forklift offers durability and versatility in handling heavy loads.
◎ VLIFT 2 ton lead acid battery electric stacker
◎ VLIFT 2 ton lithium battery electric stacker
◎ VLIFT 2 ton electric stacker with steel frame
FAQ
Company Information
Shanghai Vlift Equipment Co., Ltd. is located in We are a company that mainly provides customers with diesel forklifts,gasoline/LPG forklifts,electric forklift,electric pallet trucks,electric stacke. Our company holds our enterprise spirit of 'integrity, pragmatism, breakthrough, and tenacity'. During the development, we focus on integrity service and maintain a pragmatic style to seek breakthrough. Besides, we take the initiative to assume social responsibility, and overcome all difficulties with a tenacious attitude. To provide motivation for our company's healthy and sustainable development, we have established a high-quality and highly educated elite team. VLIFT always adheres to the service concept of 'meeting customer needs'. And we are committed to providing customers with a one-stop solution that is timely, efficient and economical.
Our products are of excellent quality and favorable price, please feel free to contact us for quotation!
