Product details of the stacker manufacturer
Quick Detail
Shanghai Vlift Equipment Co., Ltd. only uses environmentally friendly raw materials for stacker manufacturer. At the same time, it also guarantees the upgrade and maintaince of stacker manufacturer. Shanghai Vlift Equipment Co., Ltd.'s customer service is popular for its profession.
Product Information
The stacker manufacturer of VLIFT has the following advantages compared with stacker manufacturer in the market.
Specification
| Characteristics | |||
| 1.1 | Manufacturer | VLIFT | |
| 1.2 | Model designation | VS20-20RAS | |
| 1.4 | Operator type | Rider stand | |
| 1.5 | Load capacity | (kg) | 2000 |
| 1.6 | Load center | (mm) | 600 |
| 1.8 | Load distance | (mm) | 693 |
| 1.9 | Wheelbase | (mm) | 1394 |
| Weights | |||
| 2.1 | Service weight (Incl. battery) | kg | 1370 |
| 2.2 | Axle loading, laden operator/load side | kg | 1100/ 2250 |
| 2.3 | Axle loading, unladen operator/load side | kg | 950/ 400 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | PU/ PU | |
| 3.2 | Tyre size, operator side | mm | Ф230x75 |
| 3.3 | Tyre size, load side | mm | Ф85x70 |
| 3.4 | Balance wheels (dimensions) | Ф130x60 | |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1x+ 2/ 4 | |
| 3.6 | Tread, operator side | (mm) | 634 |
| Dimensions | |||
| 4.2 | Height, mast lowered | (mm) | 1870 |
| 4.3 | Free lift | (mm) | 100 |
| 4.4 | Lift height | (mm) | 2700 |
| 4.5 | Height, mast extended | (mm) | 3165 |
| 4.9 | Height of tiller arm in operating position, min/ max | (mm) | 1150/ 1480 |
| 4.15 | Fork height, lowered | (mm) | 88 |
| 4.19 | Overall length | (mm) | 2030 |
| 4.20 | Length to face of forks | (mm) | 860 |
| 4.21 | Overall width | (mm) | 850 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 60/ 190/ 1150 |
| 4.25 | Outside fork width, minimum/ maximum | (mm) | 570/600/685 |
| 4.32 | Ground clearance | (mm) | 28 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2610/2971 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2580/2941 |
| 4.35 | Outer turning radius | Wa (mm) | 1738/2099 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 4.5/ 5.0 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.10/ 0.16 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.33/ 0.23 |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 6/ 12 |
| 5.10 | Service brake | Electromagnetic | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 1.6 |
| 6.2 | Lift motor rating at S3 15% | kW | 3 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 280 |
| 6.5 | Battery weight (with box) | kg | 240 |
| Others | |||
| 8.1 | Type of drive control | AC | |
| 8.3 | Steering type | Electronic steering | |
| 8.4 | Sound level at operator's ear | dB (A) | 74 |
Effortless lifting power and efficiency
Experience the ultimate efficiency and power with our VLIFT 2 ton lead acid / lithium battery electric stacker, the perfect solution for efficient warehouse material handling. This electric pallet jack stacker offers quiet, smooth operation and a durable construction, making it ideal for heavy-duty industrial applications. With intuitive controls and a 2-ton lifting capacity, the VLIFT electric stacker forklift provides improved efficiency and maneuverability for any workplace.

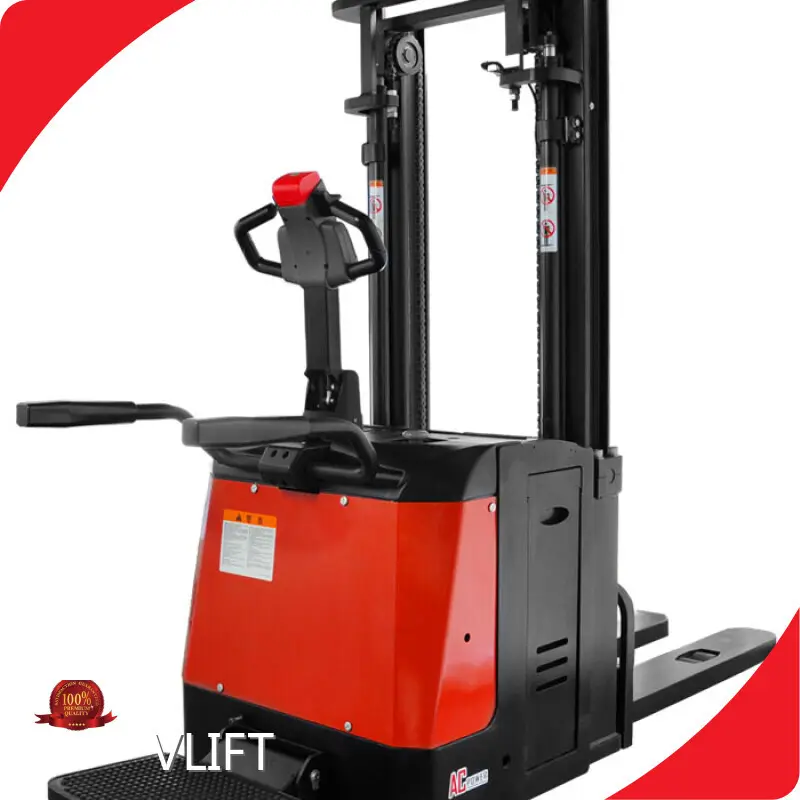

● VLIFT 2-ton Electric Stacker
● VLIFT 2-ton Electric Stacker
● VLIFT 2-ton Electric Stacker
● VLIFT 2-ton Electric Stacker
Product Display
Efficient, Versatile, Powerful, Reliable
Efficient, Powerful, Versatile, Reliable
Experience the ultimate efficiency and power with the VLIFT 2 ton electric stacker forklift, designed for versatile and reliable performance. With extended battery life and a lifting capacity of 2 tons, this fully electric pallet stacker is suitable for heavy-duty industrial applications. Its core attributes include durable construction, quiet operation, and easy maneuverability, making it the perfect electric pallet jack stacker for any warehouse or industrial setting.
◎ Unmatched Maneuverability
◎ Easy Operation
◎ Reliable Performance
Application Scenario
Material Introduction
The VLIFT 2 ton lead acid / lithium battery electric stacker is constructed with high-quality materials, ensuring its reliability and longevity. The frame and chassis of this electric stacker forklift are made of robust steel, providing excellent strength and stability for heavy lifting tasks. Additionally, the electric pallet jack stacker features sturdy forks and a reliable lifting mechanism, making it a dependable and fully electric pallet stacker for various warehouse and industrial applications. Whether it's for warehouse pallet handling, distribution center operations, or industrial material transport, the VLIFT electric stacker forklift offers durability and versatility in handling heavy loads.
◎ VLIFT 2 ton lead acid battery electric stacker
◎ VLIFT 2 ton lithium battery electric stacker
◎ VLIFT 2 ton electric stacker with steel frame
FAQ
Company Information
Shanghai Vlift Equipment Co., Ltd. (VLIFT) is a modern, market-oriented, and integrated production company in China. The main product is diesel forklifts,gasoline/LPG forklifts,electric forklift,electric pallet trucks,electric stacke. Over the years, our company has always regarded customers as center. To better meet customers' needs, we wholeheartedly provide customers with professional and high-quality one-stop service. We supply our products of good quality and affordable price in long term. Please feel free to consult us!
