Product details of the wholesale forklifts
Product Information
The time and energy into designing wholesale forklifts proves to be efficient for the fame of VLIFT. This product is superior to other products in performance and durability. Shanghai Vlift Equipment Co., Ltd.'s product sales network has spread all over the country's major cities.
Product About

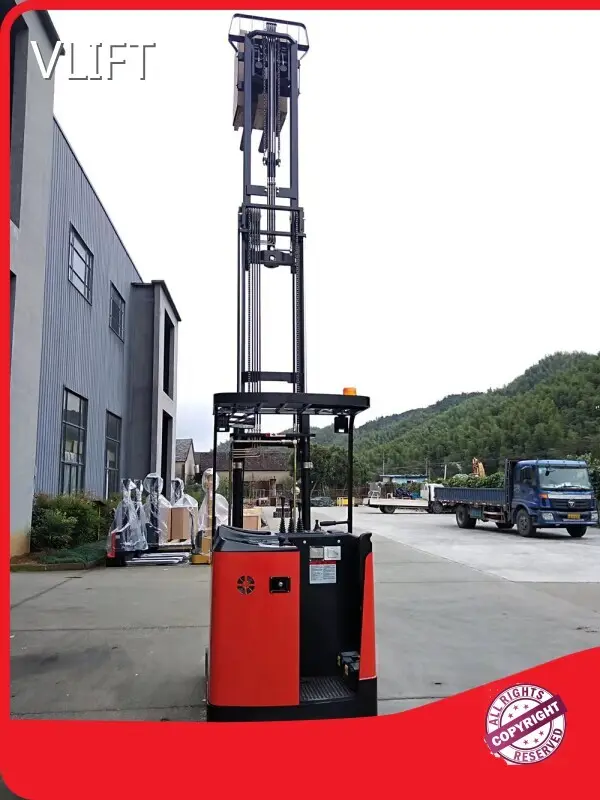

VLIFT 1.5T Electric Stacker with Lead Acid/Lithium Battery
Our VLIFT 1.5T Electric Stacker with Lead Acid/Lithium Battery is designed to enhance efficiency and productivity in your warehouse. This fully electric pallet stacker features a sleek and ergonomic design, making it easy to maneuver and operate. With the latest battery technology, this electric stacker forklift ensures long-lasting power for continuous operation.
| Characteristics |
| 1.1 |
Manufacturer |
VLIFT |
| 1.2 |
Model designation |
|
VS20-15CS |
| 1.3 |
Operator type |
|
Standing |
| 1.4 |
Load capacity |
(kg) |
1500 |
| 1.5 |
Load center |
(mm) |
500 |
| Weights |
| 2.1 |
Service weight (Incl. battery) |
kg |
1800 |
| Wheels, Chassis |
| 3.1 |
Tyre type |
|
PU/ PU |
| 3.2 |
Tyre size, operator side |
mm |
φ248*75 |
| 3.3 |
Tyre size, load side |
mm |
φ210*85 |
| 3.4 |
Wheels, number operator/load side (x=drive wheels) |
|
1x, 0/ 2 |
| Dimensions |
| 4.1 |
Height, mast lowered |
(mm) |
1530 |
| 4.2 |
Free lift |
(mm) |
0 |
| 4.3 |
Lift height |
(mm) |
2000 |
| 4.4 |
Height, mast extended |
(mm) |
2505 |
| 4.5 |
Fork height, lowered |
(mm) |
60 |
| 4.6 |
Overall length |
(mm) |
2855/3275 |
| 4.7 |
Length to face of forks |
(mm) |
1785/2205 |
| 4.8 |
Overall width |
(mm) |
1020 |
| 4.9 |
Fork dimensions |
s/ e/ l (mm) |
40/ 100/ 1070 |
| 4.10 |
Outside fork width, minimum/ maximum |
(mm) |
540/680 |
| 4.11 |
Outer turning radius |
Wa (mm) |
1690/2110 |
| Performance |
| 5.1 |
Travel speed, laden/ unladen |
km/ h |
3/5 |
| 5.2 |
Lifting speed, laden/ unladen |
m/ s |
0.07/ 0.15 |
| 5.3 |
Lowering speed, laden/ unladen |
m/ s |
0.08/ 0.15 |
| 5.4 |
Maximum gradeability, laden/ unladen S2 5 min. |
% |
4/ 6 |
| 5.5 |
Service brake |
|
Electromagnetic |
| Drive |
| 6.1 |
Drive motor rating S2 60 min. |
kW |
1.5 AC |
| 6.2 |
Lift motor rating at S3 15% |
kW |
2.5 DC |
| 6.3 |
Battery voltage/ rated capacity (5h) |
V/ Ah |
24/ 210 |
| Others |
| 7.1 |
Type of drive control |
|
AC |
| 7.2 |
Steering type |
|
EPS |
| 7.3 |
Sound level at operator's ear |
dB (A) |
74 |
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
The VLIFT 1.5T Electric Stacker is a fully electric pallet stacker suitable for various material handling applications. With the option of Lead Acid or Lithium battery, it provides efficient and powerful performance. This electric pallet jack stacker is a versatile and reliable solution for lifting and transporting heavy loads in warehouse and industrial settings.
The VLIFT 1.5T Electric Stacker is a versatile and efficient electric stacker forklift, suitable for a wide range of material handling applications.
It features a durable lead acid or lithium battery, offering reliable and long-lasting power for heavy-duty operations.
AThis fully electric pallet stacker provides excellent maneuverability and control, making it an ideal choice for warehouses, manufacturing facilities, and distribution centers in need of a dependable electric pallet jack stacker.
The VLIFT 1.5T Electric Stacker with Lead Acid/Lithium Battery is a versatile and efficient solution for lifting and transporting heavy loads in warehouse and industrial settings. With its ability to operate on both lead acid and lithium batteries, this electric stacker forklift offers flexibility and extended usage time to meet varying needs. Its ergonomic design, smooth operation, and durable construction make it the ideal choice for anyone in need of a reliable and fully electric pallet stacker or electric pallet jack stacker.
This electric stacker forklift offers efficient solutions for material handling in warehouses and industrial settings.
With its electric power system, this electric stacker forklift offers clean and quiet operation, making it suitable for indoor use.
Its fully electric pallet stacker design allows for easy maneuverability and precise positioning.
The choice of lead acid or lithium battery provides users with flexible power options to meet their specific needs.
Frequently Asked Questions
1
What is the maximum weight capacity of the VLIFT 1.5T Electric Stacker?
The VLIFT 1.5T Electric Stacker has a maximum weight capacity of 1.5 tons.
2
Can the VLIFT 1.5T Electric Stacker be used outdoors?
The VLIFT 1.5T Electric Stacker is best suited for indoor use, but can also be used outdoors in dry conditions.
3
What is the difference between the Lead Acid and Lithium battery options for the VLIFT 1.5T Electric Stacker?
The Lead Acid battery option provides a lower upfront cost, while the Lithium battery option offers a longer lifespan and faster charging.
4
What is the maximum lifting height of the VLIFT 1.5T Electric Stacker?
The VLIFT 1.5T Electric Stacker has a maximum lifting height of 5 meters, making it suitable for a wide range of stacking and lifting needs.
5
Can the VLIFT 1.5T Electric Stacker be operated by one person?
Yes, the VLIFT 1.5T Electric Stacker is designed for single-person operation, providing ease of use and increased efficiency in the workplace.
6
What safety features are included with the VLIFT 1.5T Electric Stacker?
The VLIFT 1.5T Electric Stacker is equipped with overload protection, emergency stop button, and automatic braking system to ensure safe and secure operation.
Company Feature
• VLIFT's diesel forklifts,gasoline/LPG forklifts,electric forklift,electric pallet trucks,electric stacke are exported to Europe, America, Africa and other countries and regions. And the sales volume is increasing rapidly.
• Our company enjoys a superior geographical position, convenient transportation and developed communication. All that creates good external environment for our own development.
• VLIFT has a group of professional production and processing personnel to continuously improve the production and processing capabilities of diesel forklifts,gasoline/LPG forklifts,electric forklift,electric pallet trucks,electric stacke.
• Founded in VLIFT has developed into a leading model enterprise in the industry after years of hard work and innovation.
For bulk purchase of the products, please contact us.
