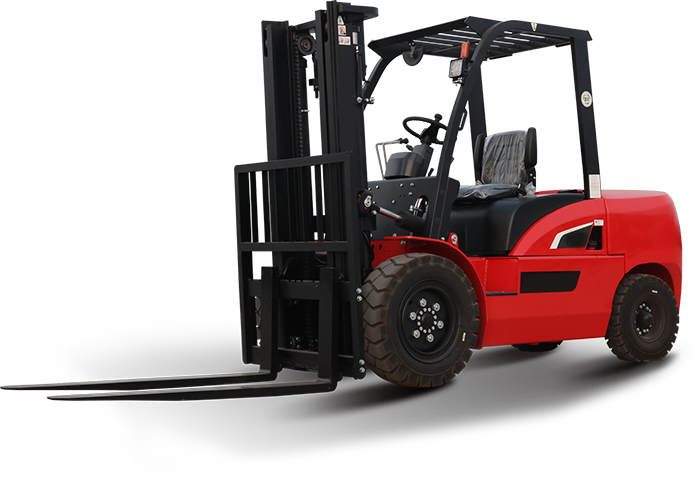

VLIFT 4ton 4000kg with Cummins engine diesel forklift 1

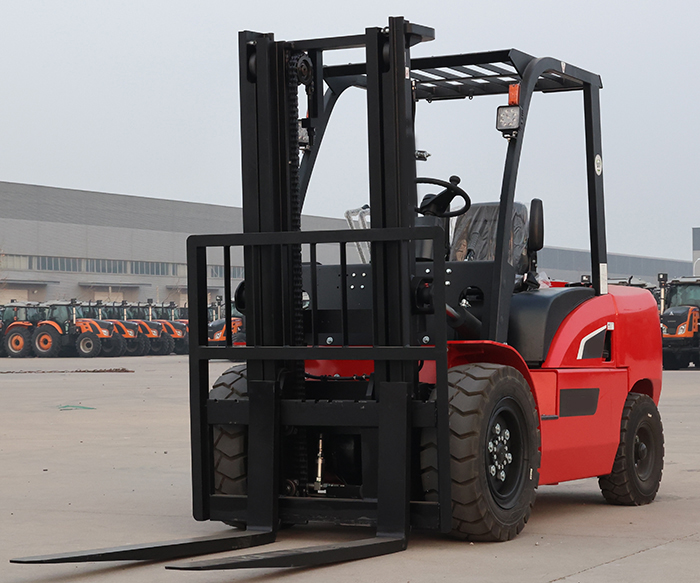

VLIFT 4ton 4000kg with Cummins engine diesel forklift 2

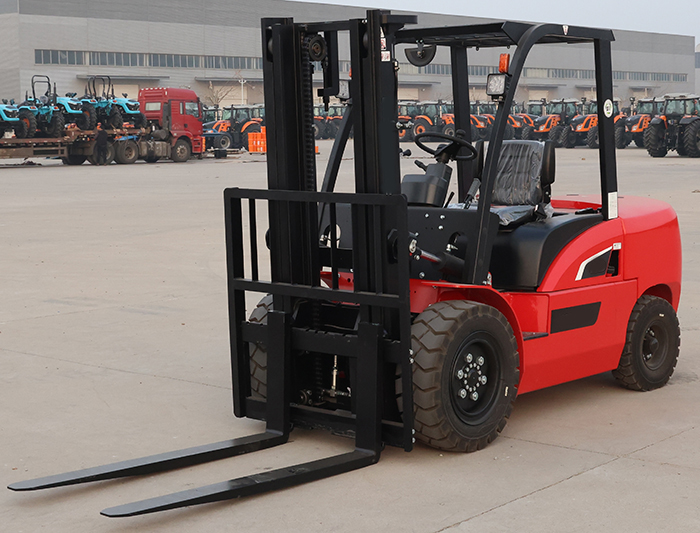

VLIFT 4ton 4000kg with Cummins engine diesel forklift 3

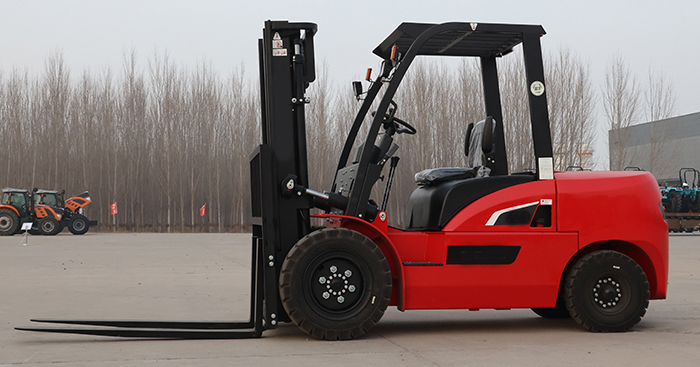

VLIFT 4ton 4000kg with Cummins engine diesel forklift 4

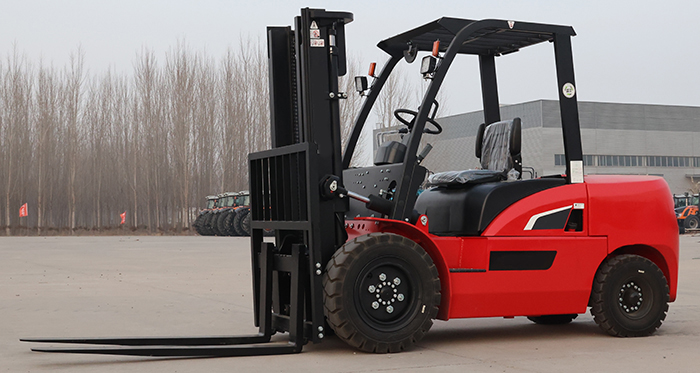

VLIFT 4ton 4000kg with Cummins engine diesel forklift 5

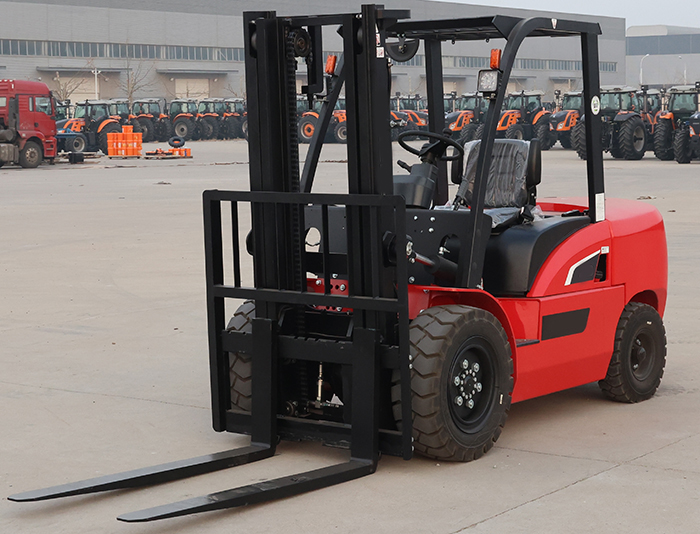

VLIFT 4ton 4000kg with Cummins engine diesel forklift 6

VLIFT 4ton 4000kg with Cummins engine diesel forklift

Power Type:diesel

Engine: Cummins QSF2.8t3TC72 engine

Rated Capacity: 4000kg

Lift Height: 3000mm,2 stage 3m wide view mast

Fork length:1220mm

warranty:1 year or 2000 hours

Model Number:

CPCD40

Brand Name:

VLIFT

Place of Origin:

shanghai

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-20(units):20(days),>20(units):To be negotiated(days)

shipping:

Support Sea freight

Customization:

YES

Inquiry

Write a Review

Displacement

2.78L

Number of cylinders

Rated torque

300/1600(N.m/rpm)

Rated power

55/2200(kW/rpm)

Rear tires

6.50-10-10PR

Front tires

250-15-16PR

Rear overhang

580mm

Front overhang

480mm

Rear wheel tread

970mm

Front wheel tread

1000mm

Min.ground clearance

140mm

Max.traction force

25(KN）

Max.travelling speed(full load/no load）

19/19.5(km/h)

Max.lowering speed(full load/no load）

330/310(mm/s)

Max.lift speed(full load/no load）

420/440(mm/s)

Model

CPCD40

Mast tilt angle(front/rear）

6/12(°)

Overall size

2960mm*1230mm*2130mm

Battery voltage/ rated capacity

12/80(V/Ah)

Height, mast lowered

2130mm

Rated Capacity

4000kg

After-sales Service Provided

YES

Free lift height

130mm

Overweight

5000kg

Brand

VLIFT

Engine model

Cummins QSF2.8

Minimum Turning Radius

2730mm

Fork Size

1220mm*122mm*50mm

Wheelbase

1900mm

Load Center Distance

500mm

Power type

Diesel

Place of Origin

shanghai

Efficient, Reliable, Powerful, Durable

The VLIFT 4ton 4000kg diesel forklift with a Cummins engine offers reliable power and performance for heavy lifting tasks. The 3000mm lift height and 1220mm fork length provide versatility and efficiency in a wide range of work environments. With a 1-year or 2000-hour warranty, customers can have peace of mind knowing they are investing in a high-quality and durable forklift.

● Powerful and Reliable Diesel Forklift.

● Superior Performance and Visibility.

● Quality and Peace of Mind.

● Durable and Efficient Heavy-duty Lifting.

Product Display

carousel-2

carousel-5

carousel-7

Efficient, powerful, reliable, versatile

VLIFT 4ton 4000kg with Cummins engine diesel forklift 12

Impressive lifting capacity

The VLIFT 4ton 4000kg with Cummins engine diesel forklift boasts a remarkable lifting capacity, making it suitable for handling heavy loads with ease and efficiency.

Reliable Cummins engine

Equipped with a powerful Cummins engine, this diesel forklift ensures optimal performance and reliability, allowing for seamless operations in various industrial settings.

Safe and convenient operation

With its ergonomic design and advanced features, operating the VLIFT forklift is both safe and convenient, providing smooth and precise handling of heavy loads.

Unparalleled reliability and productivity

The VLIFT diesel forklift is built with durable construction and cutting-edge technology, delivering unmatched reliability and productivity in a wide range of industrial applications.

Powerful Cummins Engine Performance

This 4-ton forklift is powered by a reliable Cummins QSF2.8t3TC72 diesel engine, providing strong and consistent performance. With a rated capacity of 4000kg and a lift height of 3000mm, it offers great flexibility for various lifting tasks. The 2 stage 3m wide view mast and 1220mm fork length ensure excellent visibility and maneuverability, while the 1-year or 2000-hour warranty provides peace of mind for the users.

◎ Powerful Performance

◎ Strong Lifting

◎ Enhanced Visibility

Application Scenario

VLIFT 4ton 4000kg with Cummins engine diesel forklift 17

Warehouse

Efficiently move heavy pallets

VLIFT 4ton 4000kg with Cummins engine diesel forklift 18

Construction site

Lift materials to higher levels

Industrial facility

Transport large machinery

Storage yard

Handle bulky goods with ease

Material Introduction

The VLIFT 4ton 4000kg with Cummins engine diesel forklift is constructed with durable materials such as steel and heavy-duty components to withstand the demands of heavy lifting and industrial use. The Cummins QSF2.8t3TC72 engine provides reliable and powerful performance, ensuring smooth and efficient operation. With a rated capacity of 4000kg and a lift height of 3000mm, this forklift is built to handle heavy loads with ease and precision, making it an essential piece of equipment for any warehouse or industrial setting.

◎ VLIFT 4ton 4000kg Diesel Forklift

◎ Cummins QSF2.8t3TC72 Engine

◎ 2 Stage 3m Wide View Mast

FAQ

What is the lifting capacity of the VLIFT 4ton forklift?

The VLIFT 4ton forklift has a lifting capacity of 4000kg, making it suitable for heavy-duty lifting tasks.

What type of engine does the VLIFT forklift have?

The VLIFT forklift is equipped with a Cummins diesel engine, known for its durability and performance.

What are some common applications for the VLIFT 4ton forklift?

The VLIFT 4ton forklift is commonly used in warehouses, distribution centers, manufacturing facilities, and construction sites for lifting and transporting heavy loads.

Can the VLIFT forklift be used outdoors?

Yes, the VLIFT forklift is designed to be used both indoors and outdoors, providing versatility in various work environments.

What safety features does the VLIFT forklift have?

The VLIFT forklift is equipped with features such as a speed limiter, overload protection, and a reliable braking system to ensure safe operation.

How does the Cummins engine benefit the performance of the VLIFT forklift?

The Cummins engine in the VLIFT forklift provides excellent power and fuel efficiency, allowing for reliable and cost-effective operation in demanding work conditions.
