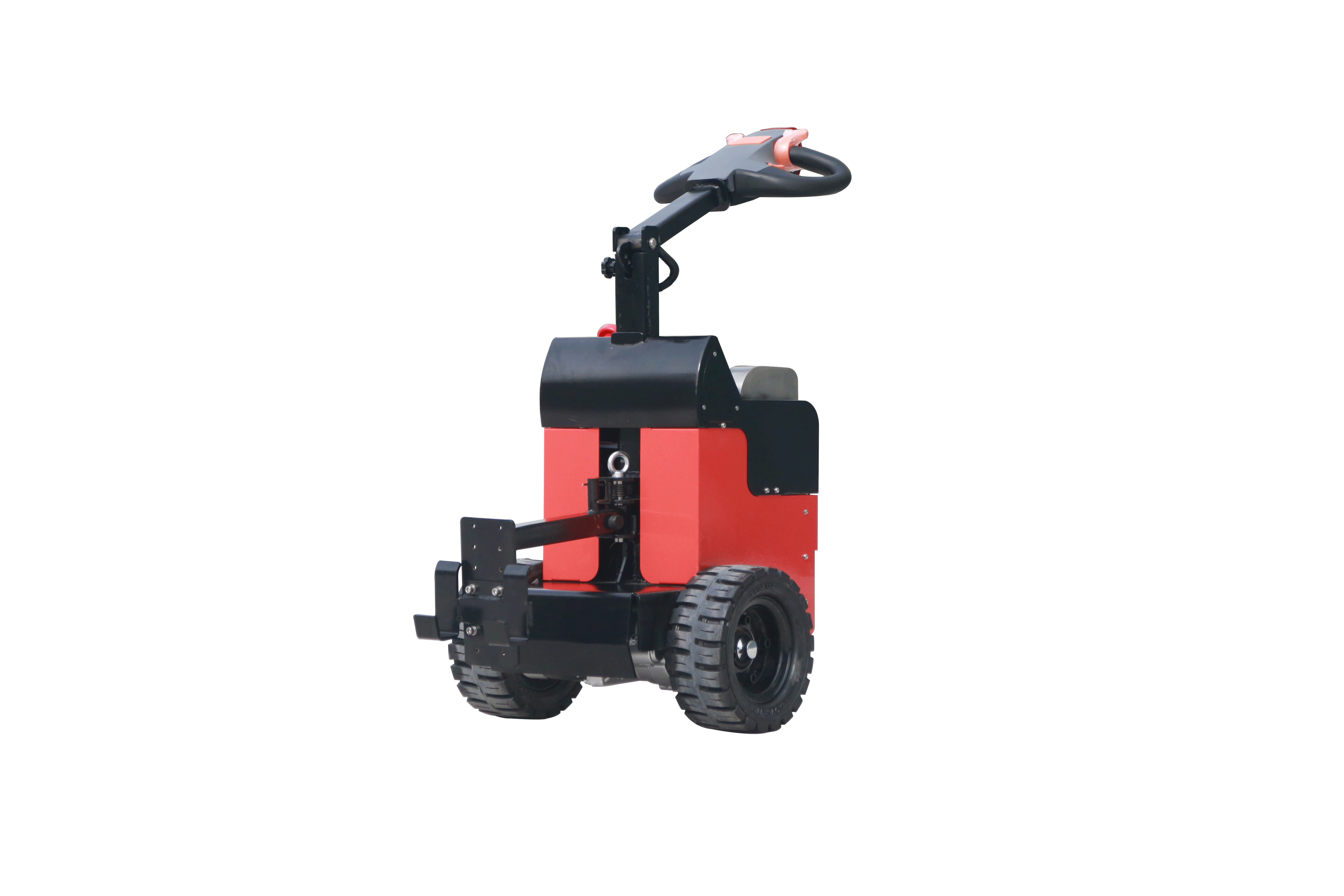

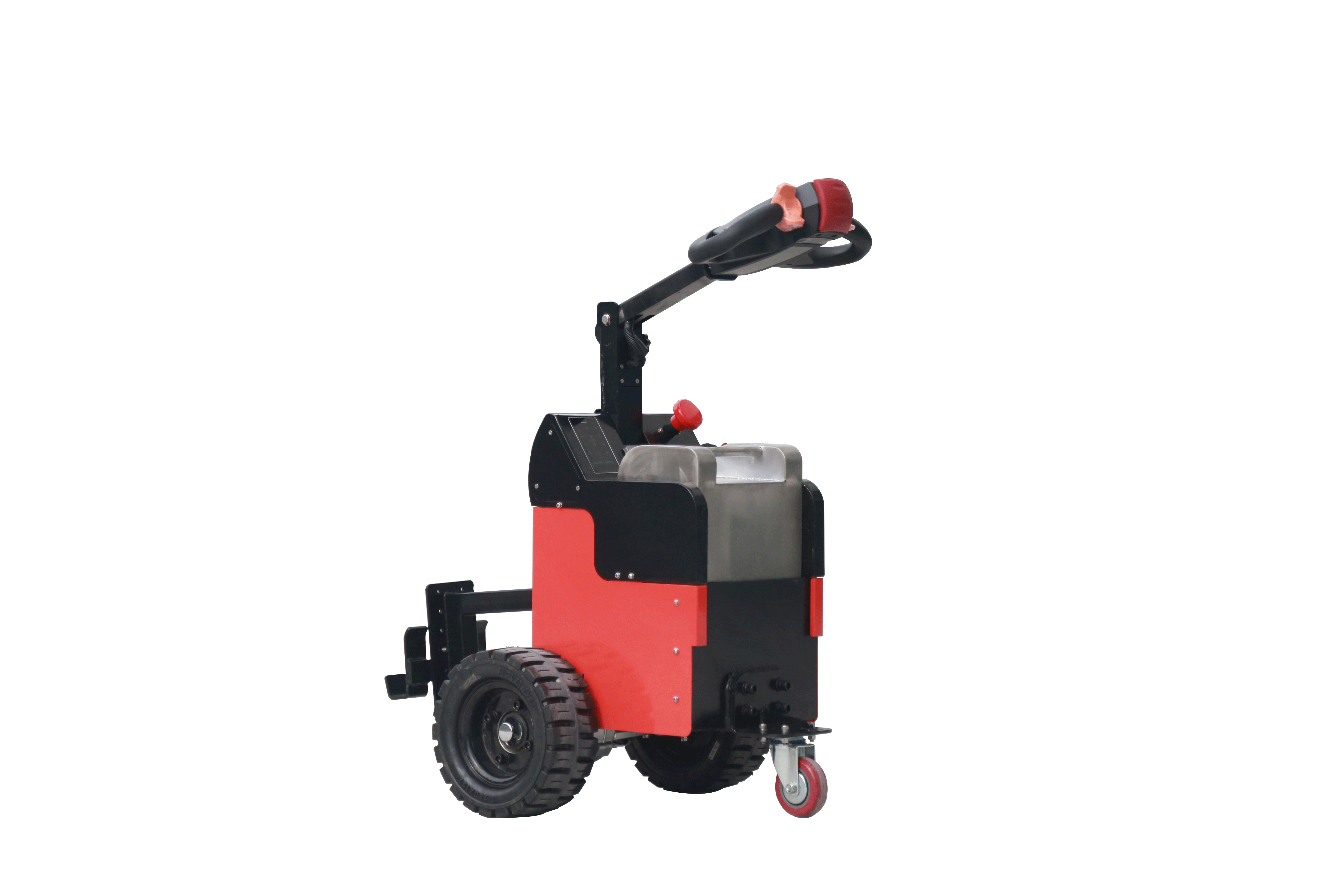

Vlift T16 Tow Tractor with Lithium Battery
无极调速系统，速度变换平稳
智能无钥匙刷卡系统
采用磷酸铁锂电池，能耗低，充电快
转弯半径小，适合狭小空间
根据不同使用场景，可以选配不同挂具
Efficient, Reliable, Durable, Eco-Friendly
The Vlift T16 Tow Tractor with Lithium Battery offers efficient and powerful towing capabilities for your warehouse or production facility. With a sleek and modern design, this tow tractor is not only practical but also stylish. The high-quality lithium battery ensures long-lasting performance, making it a reliable solution for all your material handling needs.
● Powerful
● Reliable
● Efficient
● Convenient
| Identification | 1.1 | Brand | VLIFT | |
| 1.2 | Product Model | T16 | ||
| 1.3 | Power supply | Electric | ||
| 1.4 | Operating type | Walking style | ||
| 1.5 | Max traction weight | Q(kg) | 1600 | |
| 1.6 | Rated pulling force | F(N) | 600 | |
| 1.7 | Wheelbase | y(mm) | 370 | |
| Weight | 2.1 | Truck weight（with battery） | kg | 150 |
| 2.2 | Battery weight | kg | 10 | |
| Tyre | 3.1 | Tire type,Drive wheel/Supporting wheel | Rubber/PU | |
| 3.2 | Sizes of drive wheel（diameter×width） | mm | 2×Φ280×127 | |
| 3.3 | Sizes of bearing wheel（diameter×width） | mm | 2×Φ100×32 | |
| 3.5 | Drive wheel/Supporting wheel number（×=Drive wheel） | mm | 2×/2 | |
| 3.6 | Front gauge | b10（mm） | 529 | |
| Dimensions | 4.1 | Overall height | h1（mm） | 920 |
| 4.2 | Height of tiller in drive position | h2（mm） | 800-900 | |
| 4.3 | Hook height | h3（mm） | 183/243/303 | |
| 4.4 | Overall length | l1（mm） | 866 | |
| 4.5 | Overall width | b1（mm） | 624 | |
| 4.6 | Ground clearance | m1（mm） | 100 | |
| 4.7 | Turning radius | WA（mm） | 550 | |
| Performance | 5.1 | Drive speed load/unload | km/h | 3～5 |
| 5.2 | Rated pulling force | N | 600 | |
| 5.3 | Max pulling force | N | 900 | |
| 5.4 | Max gradeability load/unload | % | 3/10 | |
| 5.5 | Brake type | Electromagnetic | ||
| Motor | 6.1 | Drive motor rating S2 60min | kw | 0.8 |
| 6.2 | Charger (external) | V/A | 29.2/15 | |
| 6.3 | Battery voltage/nominal capacity | V/Ah | 25.6/55 | |
| Others | 7.1 | Type of drive control | DC | |
| 7.2 | Steering type | Mechanics | ||
| 7.3 | Noise level | dB（A） | <70 | |
| 7.4 | Type of trailer coupling | Latch |
Product Display
Efficient, Powerful, Eco-Friendly, Reliable
Efficient, Reliable, Powerful, Innovative
The Vlift T16 Tow Tractor is equipped with a powerful lithium battery, ensuring long-lasting performance and efficiency. Its compact design allows for easy maneuverability in tight spaces, making it ideal for transporting heavy loads in warehouses and factories. With its durable construction and reliable traction control, the Vlift T16 Tow Tractor delivers smooth and stable operation for improved productivity.
◎ Compact Design
◎ Powerful Lithium Battery
◎ Durable Construction
Application Scenario
Material Introduction
The Vlift T16 Tow Tractor is constructed with high-quality materials, including a durable steel frame that ensures its longevity and strength. The incorporation of a lithium battery not only provides a longer-lasting power source but also contributes to the overall lightweight design of the tractor. The use of top-notch materials in the construction of this product guarantees reliable performance and efficiency in various industrial settings.
◎ material introduction 1
◎ material introduction 2
◎ material introduction 3
