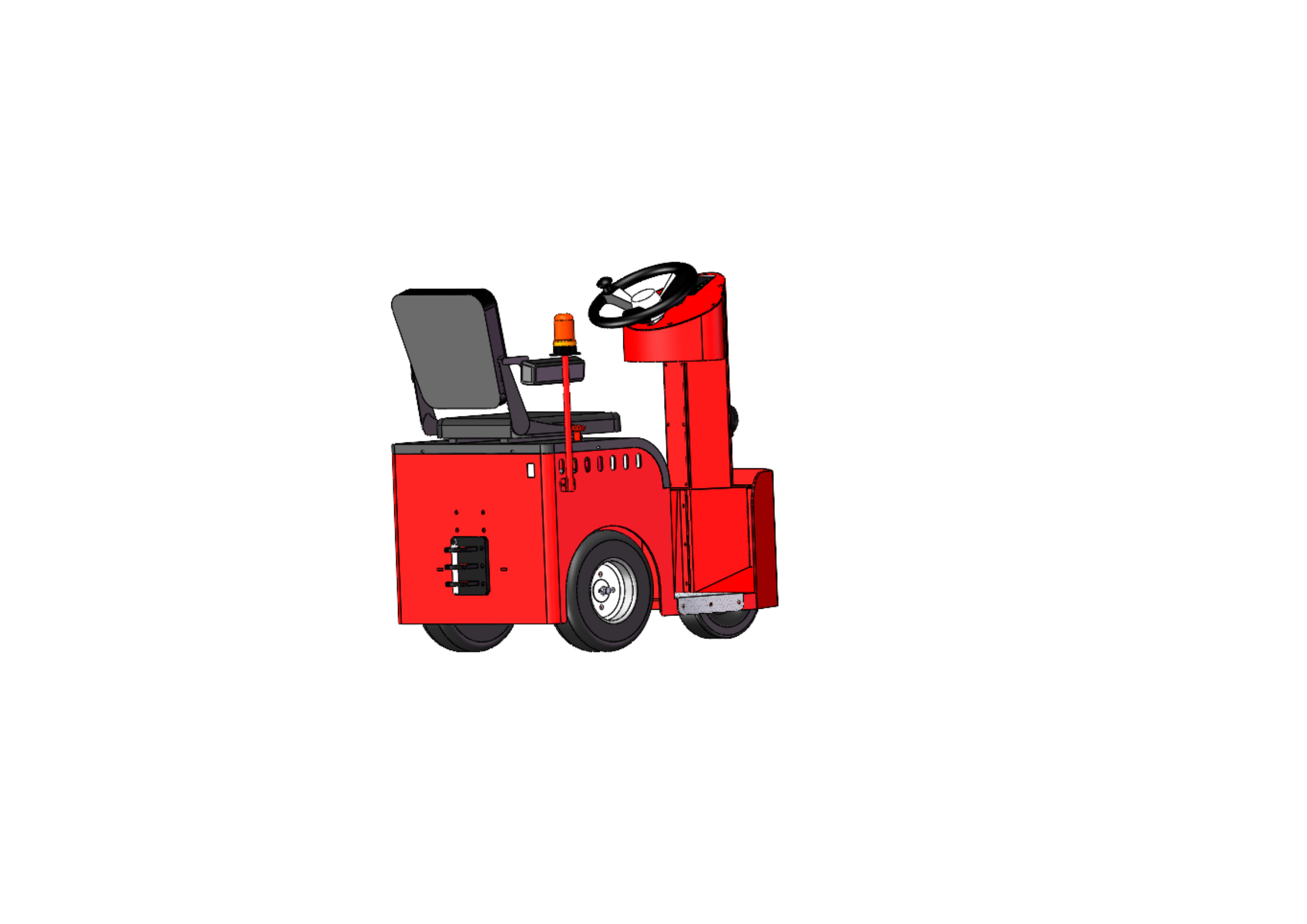

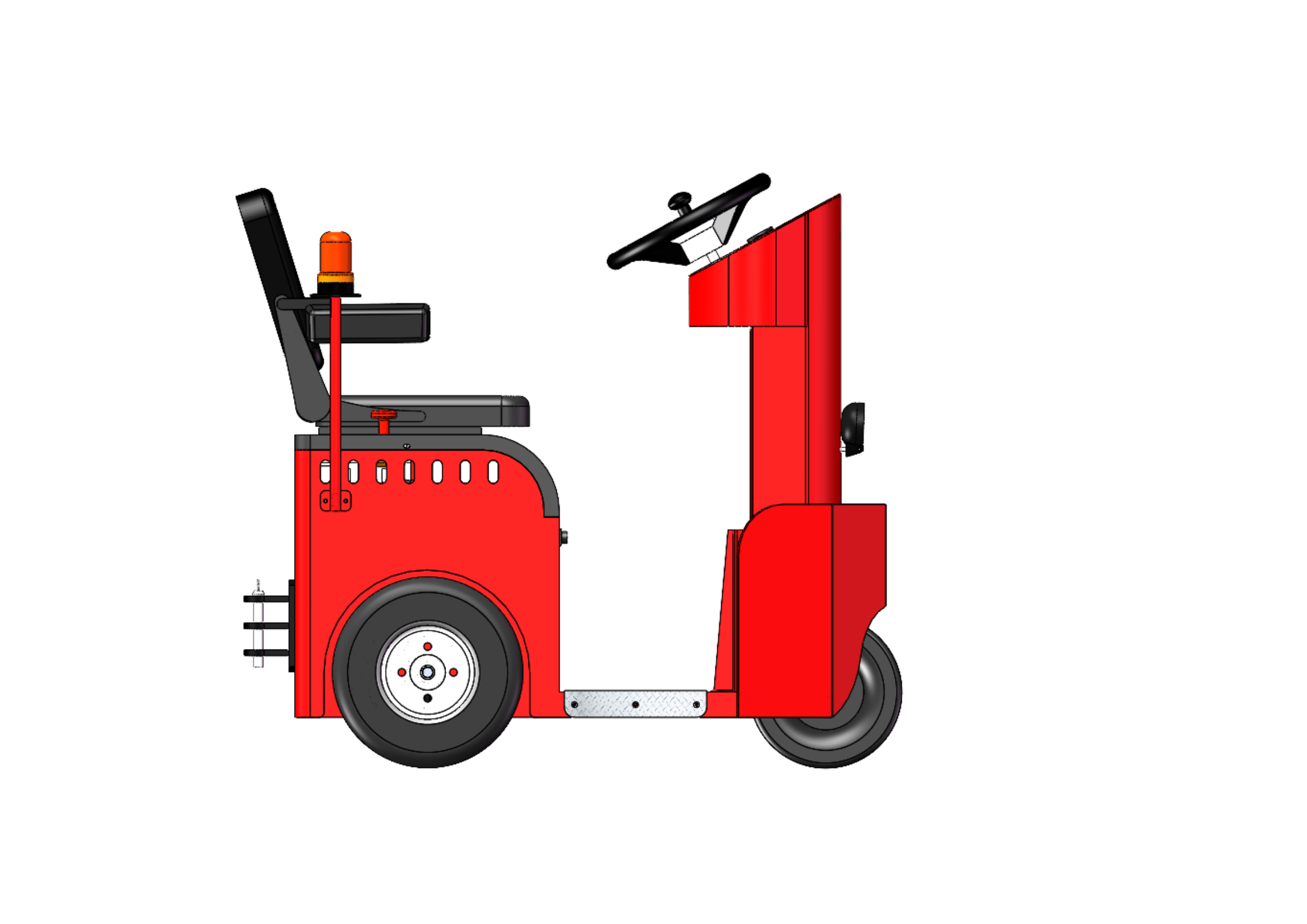

Vlift Tow Tractor with Lead Acid Battery Seat Type - Z2
Efficient, Ergonomic, Versatile, Reliable
The Vlift Tow Tractor with Lead Acid Battery Seat Type - Z2 provides customers with efficient and reliable transportation of heavy loads. The ergonomic seat design ensures comfort, while the quality construction guarantees durability. Its compact shape makes maneuvering in tight spaces a breeze.
● Efficient
● Comfortable
● Reliable
● Durable
| Identification | 1.1 | Brand | VLIFT | |
| 1.2 | Product Model | Z2 | ||
| 1.3 | Power supply | Electric | ||
| 1.4 | Operating type | Sitting-on | ||
| 1.5 | Max traction weight | Q(kg) | 3000 | |
| 1.6 | Rated pulling force | F(N) | 1000 | |
| 1.7 | Wheelbase | y(mm) | 783 | |
| Weight | 2.1 | Truck weight（with battery） | kg | 460 |
| 2.2 | Battery weight | kg | 70 | |
| Tyre | 3.1 | Tire type,Drive wheel/Supporting wheel | Rubber | |
| 3.2 | Sizes of drive wheel（diameter×width） | mm | 2×Φ375×122 | |
| 3.3 | Sizes of bearing wheel（diameter×width） | mm | Φ300×90 | |
| 3.4 | Drive wheel/Supporting wheel number（×=Drive wheel） | mm | 2×/2 | |
| 3.5 | Front gauge | b10（mm） | 700 | |
| Dimensions | 4.1 | Overall height | h1（mm） | 1300 |
| 4.2 | Height of tiller in drive position | h2（mm） | 1150 | |
| 4.3 | Hook height | h3（mm） | 280/330 | |
| 4.4 | Overall length | l1（mm） | 1295 | |
| 4.5 | Overall width | b1（mm） | 810 | |
| 4.6 | Ground clearance | m1（mm） | 100 | |
| 4.7 | Turning radius | WA（mm） | 758 | |
| Performance | 5.1 | Drive speed load/unload | km/h | 7.0/12.0 |
| 5.2 | Rated pulling force | N | 1000 | |
| 5.3 | Max pulling force | N | 2200 | |
| 5.4 | Max gradeability load/unload | % | 5/10 | |
| 5.6 | Brake type | Electromagnetic | ||
| Motor | 6.1 | Drive motor rating S2 60min | kw | 2.2 |
| 6.2 | Charger (external) | V/A | 24/15 | |
| 6.3 | Battery voltage/nominal capacity | V/Ah | 2×12/120 | |
| Others | 7.1 | Type of drive control | AC | |
| 7.2 | Steering type | Mechanics | ||
| 7.3 | Noise level | dB（A） | <70 | |
| 7.4 | Type of trailer coupling | Latch |
Product Display
Efficient, Reliable, Maneuverable, Comfortable
Efficient, Versatile, Powerful, Reliable
The Vlift Tow Tractor with Lead Acid Battery Seat Type - Z2 is a powerful and durable piece of equipment designed for efficiently transporting heavy loads in industrial settings. With its ergonomic seat design and easy-to-use controls, operators can comfortably navigate through tight spaces with precision. The sturdy construction and reliable performance make this tow tractor a valuable asset for businesses seeking increased productivity and streamlined operations.
◎ Sturdy Construction
◎ Ergonomic Seat Design
◎ Long-Lasting Battery
Application Scenario
Material Introduction
The Vlift Tow Tractor with Lead Acid Battery Seat Type - Z2 is constructed using high-quality materials to ensure durability and reliability. The sturdy frame is made of steel, providing a strong foundation for heavy-duty operations. Additionally, the seat is cushioned for comfort during extended use, making it a practical and efficient choice for industrial settings.
◎ High-quality steel frame
◎ Durable fabric upholstery
◎ Long-lasting materials
