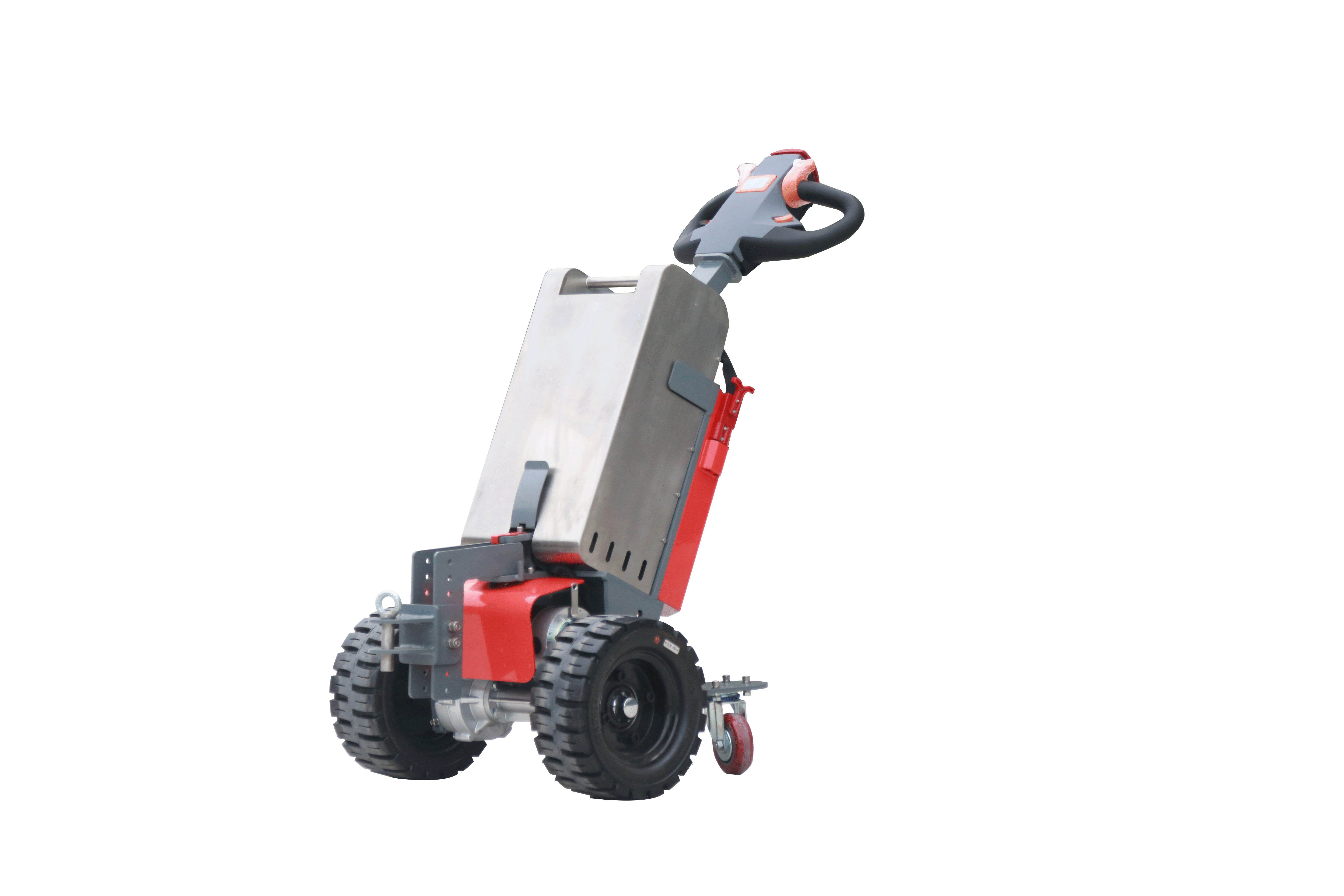

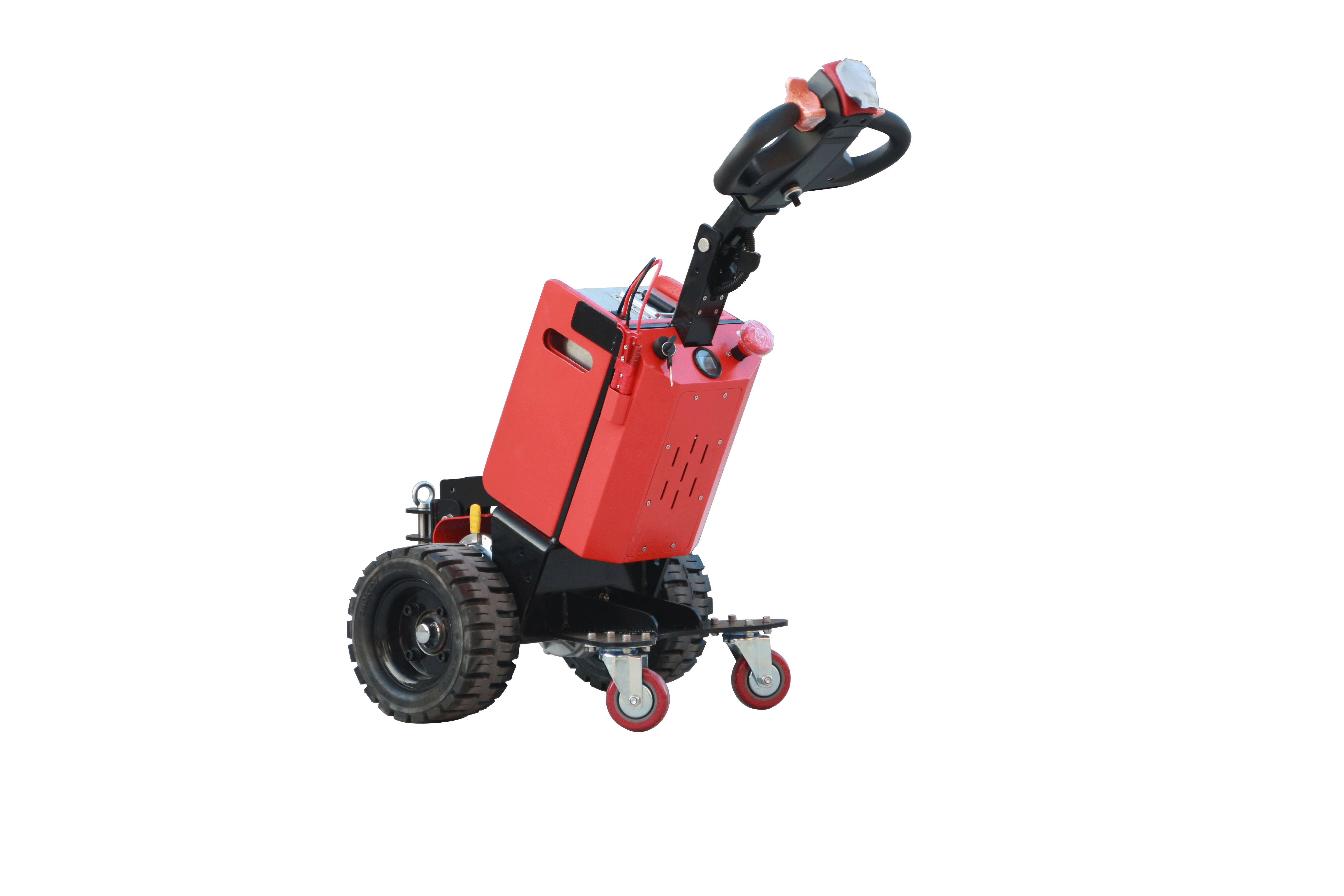

Vlift Electric Vlift Tow Tractor T10 with Lithium Battery
The Vlift Electric Tow Tractor T10 with Lithium Battery is compact and easy to operate, featuring a smooth and precise no-gear speed control system, emergency braking function, and powerful electromagnetic brakes for driving and parking. Equipped with high-quality A-grade iron phosphate lithium battery, it is suitable for indoor and outdoor use on smooth surfaces.
Product Display
| Identification | 1.1 | Brand | VLIFT | |
| 1.2 | Product Model | T10 | ||
| 1.3 | Power supply | Electric | ||
| 1.4 | Operating type | Walking style | ||
| 1.5 | Max traction weight | Q(kg) | 1000 | |
| 1.6 | Rated pulling force | F(N) | 300 | |
| 1.7 | Wheelbase | y(mm) | 283 | |
| Weight | 2.1 | Truck weight（with battery） | kg | 120 |
| 2.2 | Battery weight | kg | 10 | |
| Tyre | 3.1 | Tire type,Drive wheel/Supporting wheel | Rubber/PU | |
| 3.2 | Sizes of drive wheel（diameter×width） | mm | 2×Φ250×95 | |
| 3.3 | Sizes of bearing wheel（diameter×width） | mm | 2×Φ75×32 | |
| 3.5 | Drive wheel/Supporting wheel number（×=Drive wheel） | mm | 2×/2 | |
| 3.6 | Front gauge | b10（mm） | 465 | |
| 3.7 | Rear track | b11（mm） | 300 | |
| Dimensions | 4.1 | Overall height | h1（mm） | 920 |
| 4.2 | Height of tiller in drive position | h2（mm） | 800-900 | |
| 4.3 | Hook height | h3（mm） | 183/243/303 | |
| 4.4 | Overall length | l1（mm） | 1050 | |
| 4.5 | Overall width | b1（mm） | 560 | |
| 4.6 | Ground clearance | m1（mm） | 100 | |
| 4.7 | Turning radius | WA（mm） | 815 | |
| Performance | 5.1 | Drive speed load/unload | km/h | 3～5 |
| 5.2 | Rated pulling force | N | 300 | |
| 5.3 | Max pulling force | N | 500 | |
| 5.4 | Max gradeability load/unload | % | 3/10 | |
| 5.5 | Brake type | Electromagnetic | ||
| Motor | 6.1 | Drive motor rating S2 60min | kw | 0.4 |
| 6.2 | Charger (external) | V/A | 29.2/15 | |
| 6.3 | Battery voltage/nominal capacity | V/Ah | 25.6/55 | |
| Others | 7.1 | Type of drive control | DC | |
| 7.2 | Steering type | Mechanics | ||
| 7.3 | Noise level | dB（A） | <70 | |
| 7.4 | Type of trailer coupling | Latch |
Efficient, Eco-Friendly, Powerful, Stylish
The Vlift Electric Tow Tractor T10 offers superior power and efficiency with its lithium battery, allowing for seamless operation in various industrial settings. Its sleek design and durable construction ensure long-lasting performance, making it a reliable solution for transporting heavy loads with ease. Experience the convenience and versatility of the Vlift Electric Tow Tractor T10 for all your material handling needs.
● Efficient
● Durable
● Advanced
● Reliable
Efficient, Powerful, Convenient, Sustainable
Efficient, Powerful, Eco-Friendly, Innovative
The Vlift Electric Vlift Tow Tractor T10 with Lithium Battery is a powerful and efficient machine designed for towing heavy loads in industrial settings. With its lithium battery, it offers long-lasting power and quick charging capabilities for uninterrupted use. Its compact and ergonomic design provides easy maneuverability and comfortable operation for increased productivity and efficiency.
◎ Long-lasting Performance
◎ Quick Charging
◎ Compact and Sturdy
Application Scenario
Material Introduction
The Vlift Electric Vlift Tow Tractor T10 with Lithium Battery is constructed with durable and high-quality materials to ensure longevity and reliability. The frame of the tow tractor is made of sturdy steel, while the lithium battery provides a lightweight yet powerful energy source. Additionally, the ergonomic design of the handle and controls are made of comfortable and durable materials to provide for ease of use and operator comfort.
◎ Frame
◎ Battery
◎ Material
FAQ
