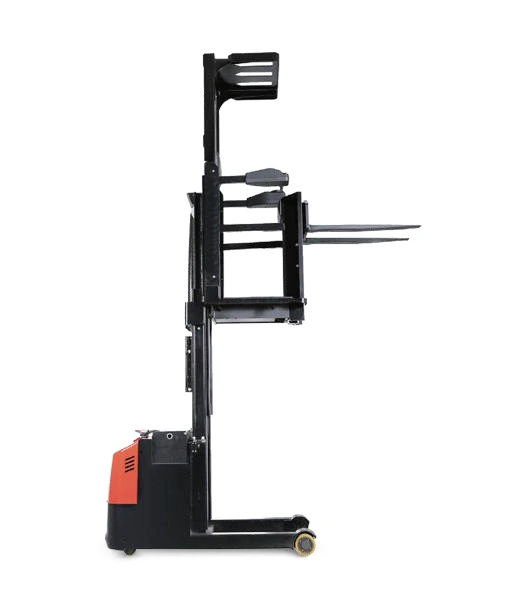

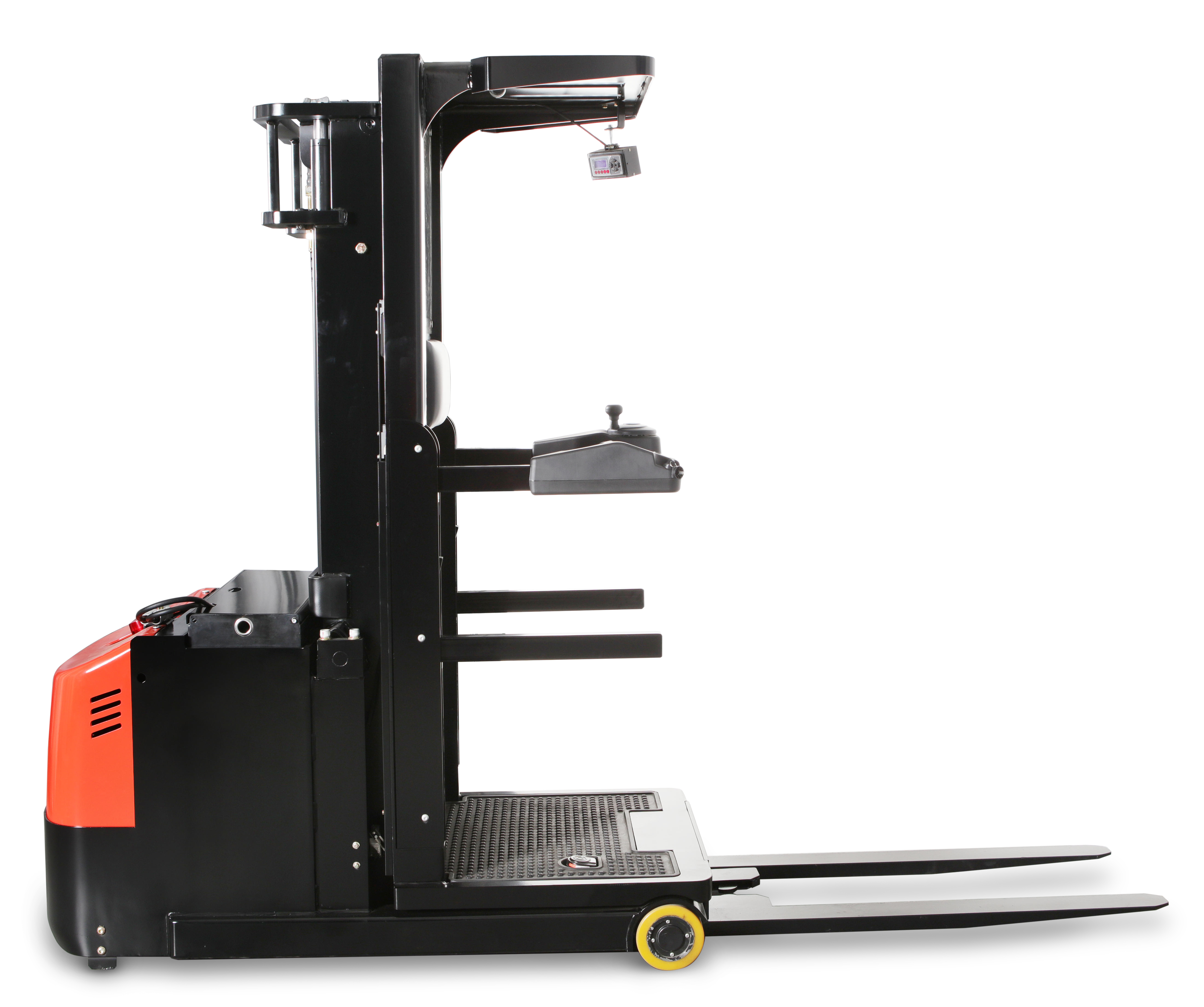

vlift High-level Order Picker JX2-3 lifting height 3200/3600mm
| Characteristics | ||||
| 1.1 | Manufacturer | VLIFT | VLIFT | |
| 1.2 | Model designation | JX2-3(3200） | JX2-3(3600） | |
| 1.3 | Drive unit | Battery | Battery | |
| 1.4 | Operator type | Pick | Pick | |
| 1.5 | Load capacity | Q (kg) | 136/700 | 136/700 |
| 1.6 | Load center | c (mm) | 600 | 600 |
| 1.7 | Load distance (Raised/ Lowered) | x (mm) | 140 | 140 |
| 1.8 | Wheelbase | y (mm) | 1330 | 1330 |
| Weights | ||||
| 2.1 | Self weight | kg | 1780 | 1794 |
| 2.2 | Axle loading, laden operator/load side | kg | 1753/592 | 1758/602 |
| 2.3 | Axle loading, unladen operator/load side | kg | 707/1072 | 712/1082 |
| Wheels, Chassis | ||||
| 3.1 | Tyre type,operator side/load side | PU/RUB | PU/RUB | |
| 3.2 | Front wheel (d x w) | mm | Ф150×90 | Ф150×90 |
| 3.3 | Rear wheel (d x w) | mm | Ф230×75 | Ф230×75 |
| 3.4 | Balance wheel size | mm | Ф74×48 | Ф74×48 |
| 3.5 | Wheels,number driving, balance/loading (x=drive wheels) | mm | 1x，2/2 | 1x，2/2 |
| 3.6 | Front track | b10(mm) | 710 | 710 |
| 3.7 | Rear track | b11(mm) | 570 | 570 |
| Dimensions | ||||
| 4.1 | Height, mast lowered | h1（mm） | 1800 | 2000 |
| 4.2 | Free lift height | h2（mm） | 737 | 737 |
| 4.3 | Lift Height | h3(mm) | 2463 | 2863 |
| 4.4 | Height, mast extended | h4(mm) | 4745 | 5145 |
| 4.5 | Overhead Guard / Cab Height | h6(mm) | 2345 | 2345 |
| 4.6 | Ground Clearance of Seat / Platform | h7(mm) | 220 | 220 |
| 4.7 | Platform Lift Height | h12(mm) | 2620 | 3020 |
| 4.8 | Height ， fork after lowering | h13(mm) | 63 | 63 |
| 4.9 | Overall length(including towing hook) | L1(mm) | 2725 | 2725 |
| 4.10 | Length to face of forks | l2(mm) | 1655 | 1655 |
| 4.11 | Overall width | b1/ b2 (mm) | 800 | 800 |
| 4.12 | Fork dimensions | s/ e/ l (mm) | 35*100*1070 | 35*100*1070 |
| 4.13 | Fork outer width | b5(mm) | 560 | 560 |
| 4.14 | Ground clearance, center of wheelbase | m2 (mm) | 50 | 50 |
| 4.15 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 3050 | 3050 |
| 4.16 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 3160 | 3160 |
| 4.17 | Turning radius | Wa(mm) | 1515 | 1515 |
| Performance | ||||
| 5.1 | Travel speed, laden/ unladen | km/ h | 6/6 | 6/6 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.13/0.16 | 0.13/0.16 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.23/0.26 | 0.23/0.26 |
| 5.4 | Max climbing gradient, full load/empty load | % | 0 | 0 |
| 5.5 | Driving brake | Electromagnetic | Electromagnetic | |
| Drive | ||||
| 6.1 | Drive motor rating S2 60 min. | kW | 2.5 | 2.5 |
| 6.2 | Lift motor rating at S3 15% | kW | 3 | 3 |
| 6.3 | Battery voltage/nominal capacity | V/ Ah | 24/360 | 24/360 |
| 6.4 | Battery weight | kg | 330 | 330 |
| Others | ||||
| 7.1 | Type of drive control | AC | AC | |
| 7.2 | Steering type | Electron | Electron | |
| 7.3 | Sound level at operator's ear | dB (A) | 74 | 74 |
