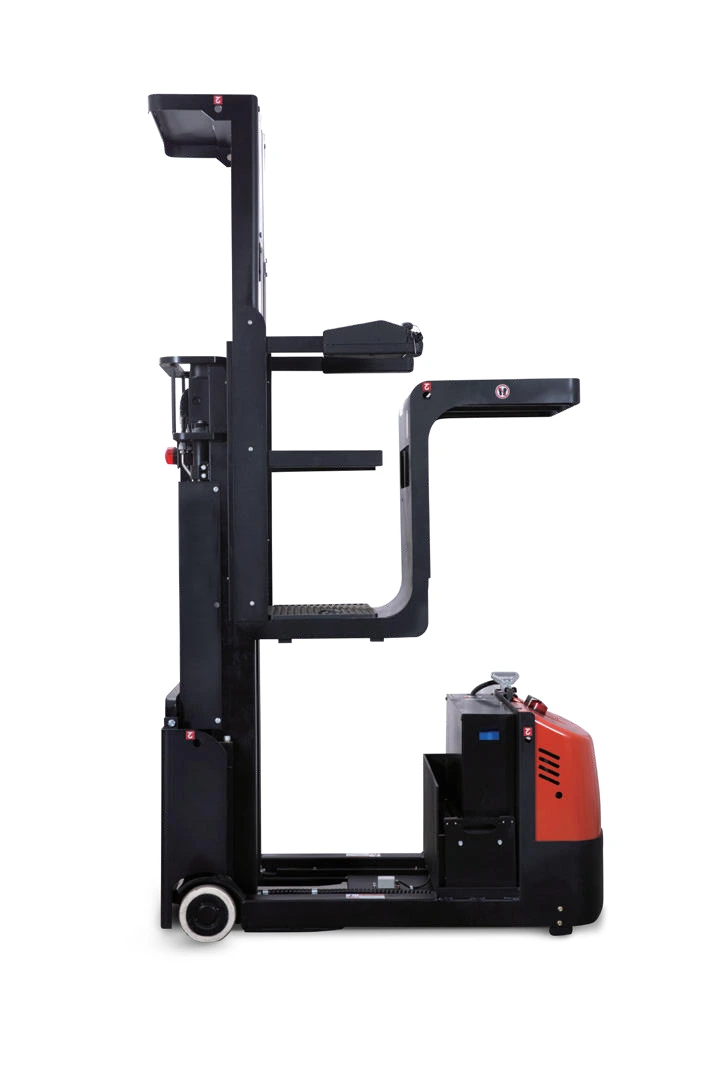

vlift Mid-level Order Picker JX1 lifting height 3200/4100/4800
| Characteristics | |||||
| 1.1 | Manufacturer | VLIFT | VLIFT | VLIFT | |
| 1.2 | Model designation | JX1(3200) | JX1(4100) | JX1(4880) | |
| 1.3 | Drive unit | Battery | Battery | Battery | |
| 1.4 | Operator type | Pick | Pick | Pick | |
| 1.5 | Load capacity | Q (kg) | 136/227/137 | 136/227/137 | 136/227/137 |
| 1.6 | Load center | c (mm) | / | / | / |
| 1.7 | Load distance (Raised/ Lowered) | x (mm) | / | / | / |
| 1.8 | Wheelbase | y (mm) | 1150 | 1150 | 1256 |
| Weights | |||||
| 2.1 | Self weight | kg | 1242 | 1340 | 1646 |
| 2.2 | Axle loading, laden operator/load side | kg | 644/1096 | 740/1100 | 837/1309 |
| 2.3 | Axle loading, unladen operator/load side | kg | 475/767 | 520/820 | 670/1036 |
| Wheels, Chassis | |||||
| 3.1 | Tyre type,operator side/load side | PU/RUB | VLIFT | PU/RUB | |
| 3.2 | Front wheel (d x w) | mm | Ф230×75 | Ф230×75 | Ф230×75 |
| 3.3 | Rear wheel (d x w) | mm | Ф204×76 | Ф204×76 | Ф204×76 |
| 3.4 | Balance wheel size | mm | Ф74×48 | Ф74×48 | Ф74×48 |
| 3.5 | Wheels,number driving, balance/loading (x=drive wheels) | mm | 1x，2/2 | 1x，2/2 | 1x，2/2 |
| 3.6 | Front track | b10(mm) | 555 | 555 | 615 |
| 3.7 | Rear track | b11(mm) | 740 | 740 | 784 |
| Dimensions | |||||
| 4.1 | Height, mast lowered | h1（mm） | 1510 | 2080 | 2090 |
| 4.2 | Free lift height | h2（mm） | / | / | / |
| 4.3 | Lift Height | h3(mm) | 4030 | 4930 | 5710 |
| 4.4 | Height, mast extended | h4(mm) | 4540 | 5970 | 6750 |
| 4.5 | Overhead Guard / Cab Height | h6(mm) | 1590 | 2120 | 2120 |
| 4.6 | Ground Clearance of Seat / Platform | h7(mm) | 250 | 250 | 250 |
| 4.7 | Platform Lift Height | h12(mm) | 3200 | 4100 | 4880 |
| 4.8 | Height ， fork after lowering | h13(mm) | / | / | / |
| 4.9 | Overall length(including towing hook) | L1(mm) | 1500 | 1500 | 1610 |
| 4.10 | Length to face of forks | l2(mm) | / | / | / |
| 4.11 | Overall width | b1/ b2 (mm) | 823 | 800 | 876 |
| 4.12 | Fork dimensions | s/ e/ l (mm) | / | / | / |
| 4.13 | Fork outer width | b5(mm) | / | / | / |
| 4.14 | Ground clearance, center of wheelbase | m2 (mm) | 50 | 50 | 50 |
| 4.15 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | / | / | / |
| 4.16 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | / | / | / |
| 4.17 | Turning radius | Wa(mm) | 1385 | 1385 | 1450 |
| Performance | |||||
| 5.1 | Travel speed, laden/ unladen | km/ h | 5.5/5.5 | 5.5/5.5 | 5.5/5.5 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.17/0.21 | 0.17/0.21 | 0.17/0.21 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.35/0.26 | 0.35/0.26 | 0.35/0.26 |
| 5.4 | Max climbing gradient, full load/empty load | % | 0 | 0 | 0 |
| 5.5 | Driving brake | Electromagnetic | Electromagnetic | Electromagnetic | |
| Drive | |||||
| 6.1 | Drive motor rating S2 60 min. | kW | 1.7 | 1.7 | 1.7 |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | 2.2 | 2.2 |
| 6.3 | Battery voltage/nominal capacity | V/ Ah | 24/224 | 24/224 | 24/280 |
| 6.4 | Battery weight | kg | 163 | 163 | 245 |
| Others | |||||
| 7.1 | Type of drive control | AC | AC | AC | |
| 7.2 | Steering type | Electron | Electron | Electron | |
| 7.3 | Sound level at operator's ear | dB (A) | 74 | 74 | 74 |
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Efficient & Versatile Mid-Level Picker
The vLift Mid-level Order Picker JX1 provides a lifting height of 3200/4100/4800, making it versatile for various warehouse needs. Its high-quality construction ensures durability and reliability for long-term use. The compact shape and efficient design make it an essential tool for streamlining your warehouse operations.
● Efficient
● Durable
● Versatile
● Streamlined

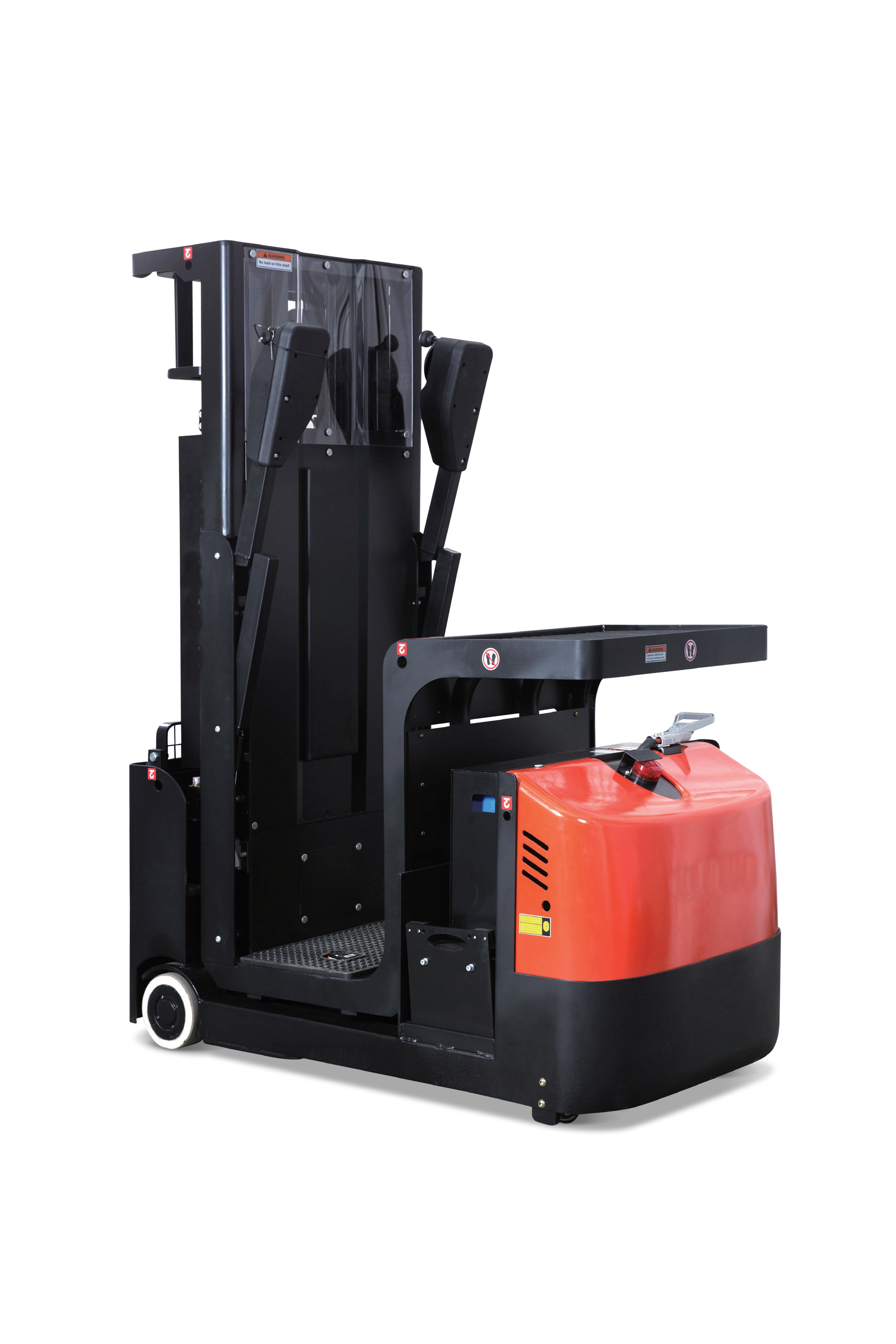

Product Display
carousel-2
carousel-5
carousel-7
Efficient, versatile, safe, reliable
Versatile
The vlift Mid-level Order Picker JX1 offers three different lifting heights of 3200, 4100, and 4800, providing versatility for various warehouse tasks.
Efficient
With a sturdy construction and reliable performance, this product is designed to streamline order picking processes and improve efficiency.
Maneuverable
Its features include easy maneuverability, ergonomic design for operator comfort, making it a top choice for warehouses looking to upgrade their equipment.
Safe
The vlift Mid-level Order Picker JX1 is equipped with advanced safety measures, ensuring a secure working environment for operators.
Efficient Mid-Level Lifting Solution
The vlift Mid-level Order Picker JX1 offers a lifting height of 3200, 4100, or 4800mm, providing versatility for various warehouse needs. With its sturdy and reliable design, this order picker ensures efficient and safe operation. Its intuitive controls and smooth maneuverability make it easy to use, enhancing productivity in any warehouse setting.
◎ High Lifting Capacity
◎ Sturdy and Ergonomic
◎ Reliable Handling

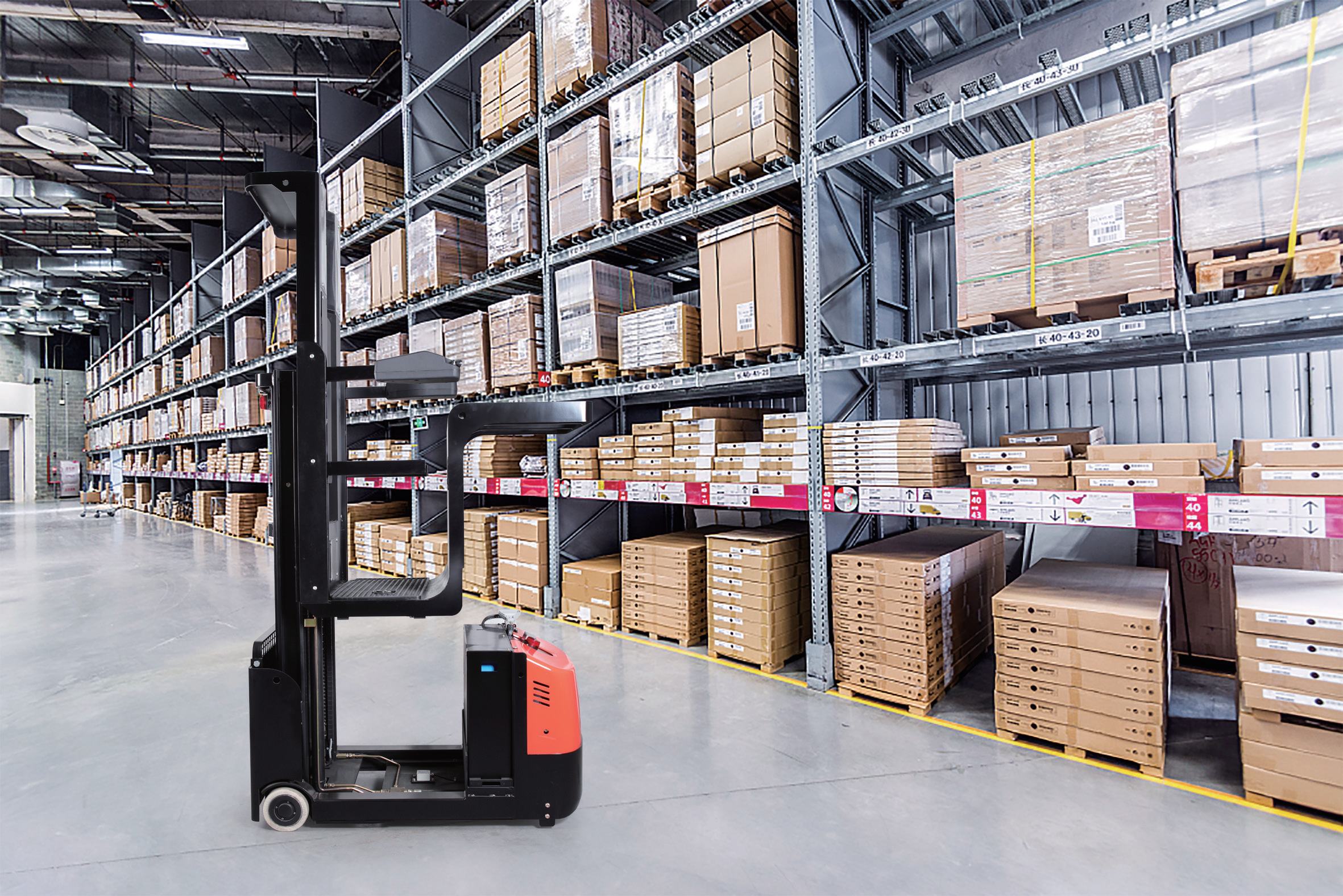

Application Scenario
Increased Efficiency
Increase productivity in warehouse and distribution centers by easily picking and transporting items at heights of 3200, 4100, or 4800 millimeters with the vLift Mid-level Order Picker JX1.
Streamlined Operations
Streamline warehouse operations with the versatile lifting capabilities of the vLift Mid-level Order Picker JX1, effortlessly maneuvering through aisle ways and reaching various shelves.
Space Optimization
Optimize warehouse space by utilizing the vLift Mid-level Order Picker JX1 to efficiently pick and transport items at different heights, maximizing storage capacity.
Enhanced Maneuverability
Enhance maneuverability in warehouse settings with the vLift Mid-level Order Picker JX1, allowing for easy navigation through tight aisle ways and efficient picking at various heights.
Material Introduction
The vlift Mid-level Order Picker JX1 is constructed using high-quality steel for durability and reliability in warehouse operations. The lifting forks are made of sturdy aluminum for lightweight maneuverability and ease of use. The sleek design of the order picker is accentuated by its high-grade plastic components, ensuring a modern and efficient work environment.
◎ material introduction 1

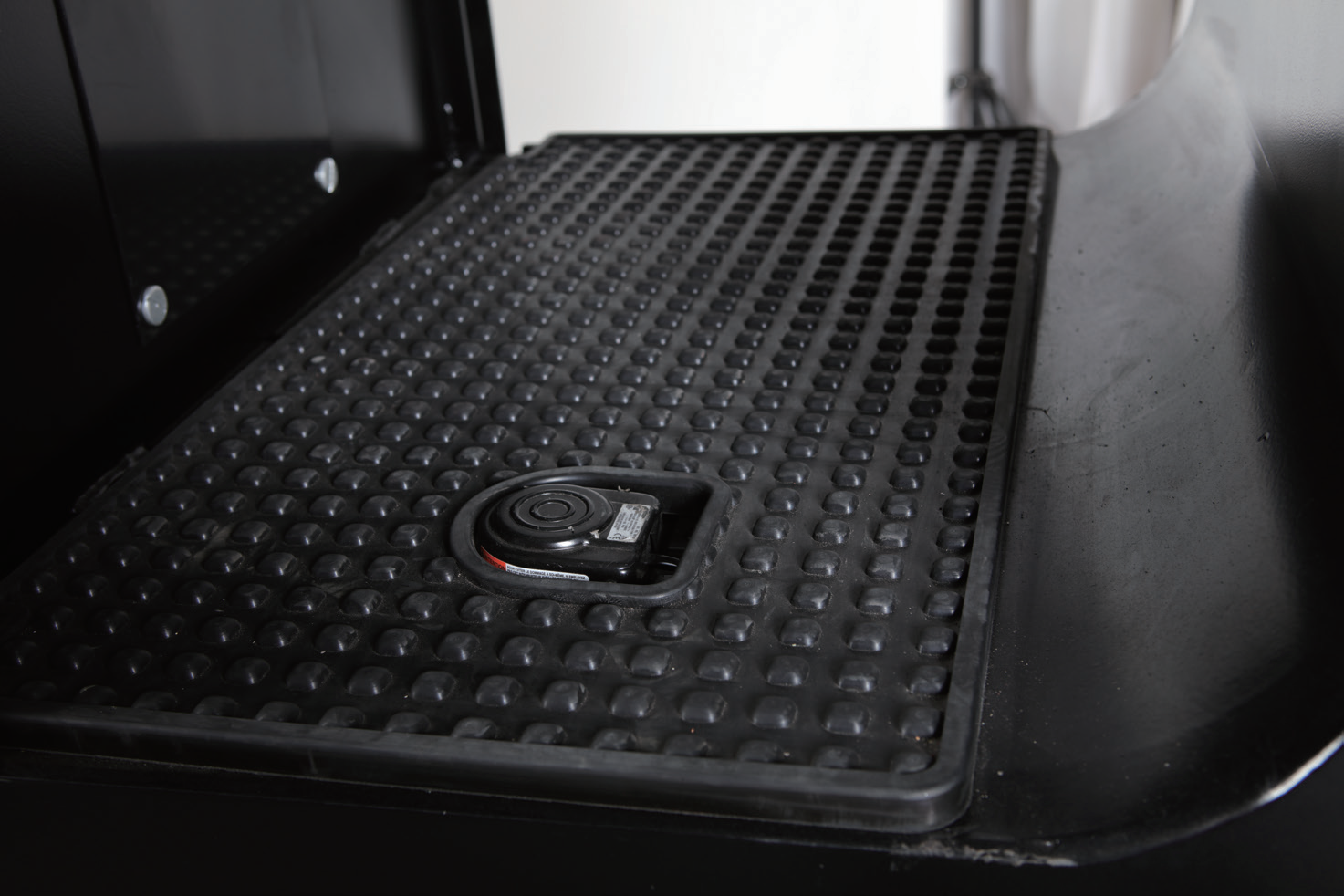

◎ Non-slip platform surface
◎ Robust aluminum mast
FAQ
1
What is the lifting height of the vlift Mid-level Order Picker JX1?
The vlift Mid-level Order Picker JX1 has a lifting height of 3200/4100/4800 mm.
2
What are the application scenarios for the vlift Mid-level Order Picker JX1?
The vlift Mid-level Order Picker JX1 is ideal for use in warehouses, distribution centers, manufacturing facilities, and other industrial settings where picking and storing items at various heights is necessary.
3
Can the vlift Mid-level Order Picker JX1 be used for heavy loads?
The vlift Mid-level Order Picker JX1 is designed to handle medium-weight loads up to a certain weight capacity. It is important to check the weight capacity of the specific model before use.
4
What safety features are included with the vlift Mid-level Order Picker JX1?
The vlift Mid-level Order Picker JX1 is equipped with safety features such as emergency stop buttons, safety guards, and anti-slip platforms to ensure the safety of operators during operation.
5
Is the vlift Mid-level Order Picker JX1 easy to maneuver in tight spaces?
The vlift Mid-level Order Picker JX1 is designed to be compact and maneuverable, making it easy to navigate through narrow aisles and tight spaces in warehouses and other industrial settings.
6
Can the lifting height of the vlift Mid-level Order Picker JX1 be adjusted?
Yes, the lifting height of the vlift Mid-level Order Picker JX1 can be adjusted to different heights based on the specific needs of the application.
