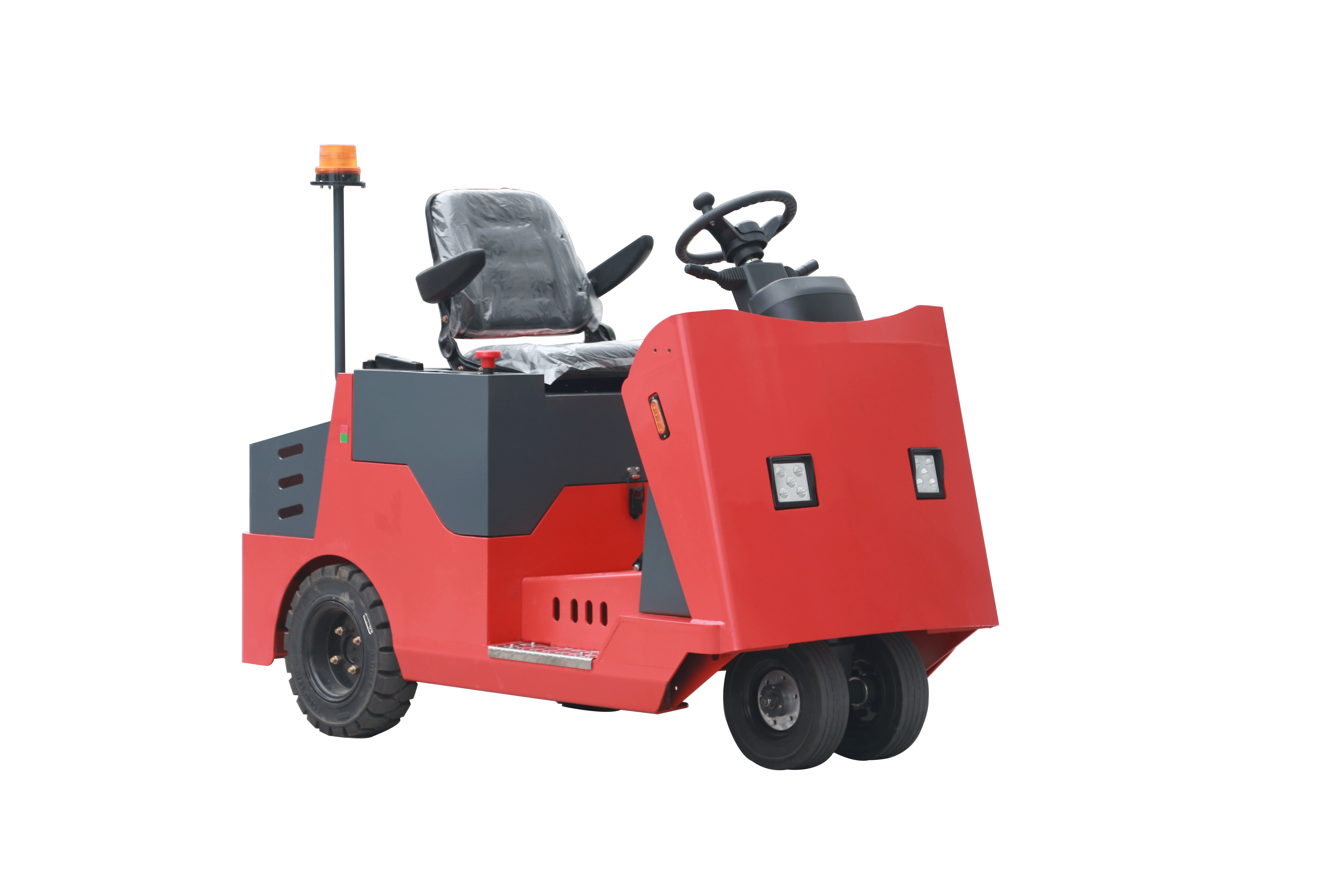

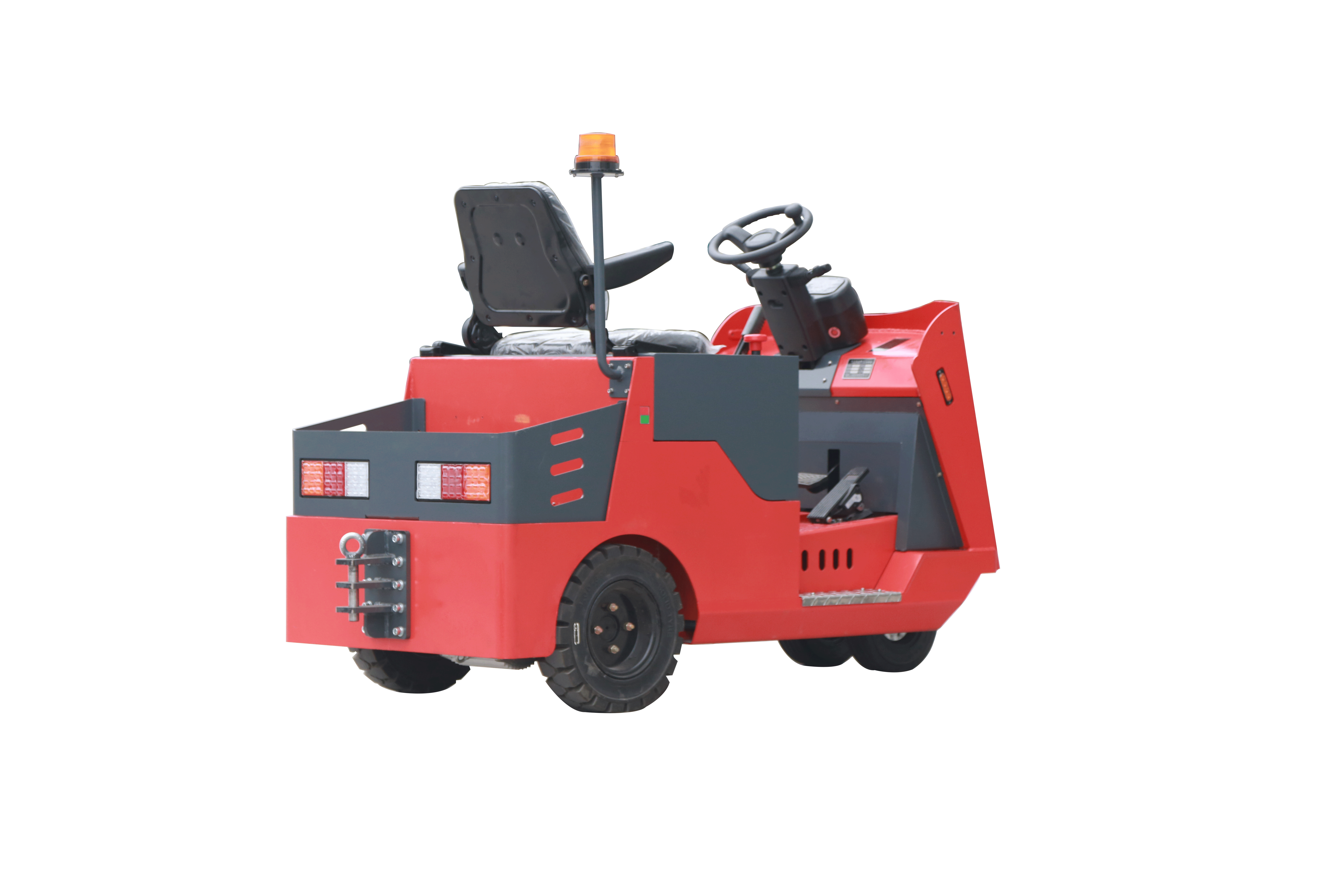

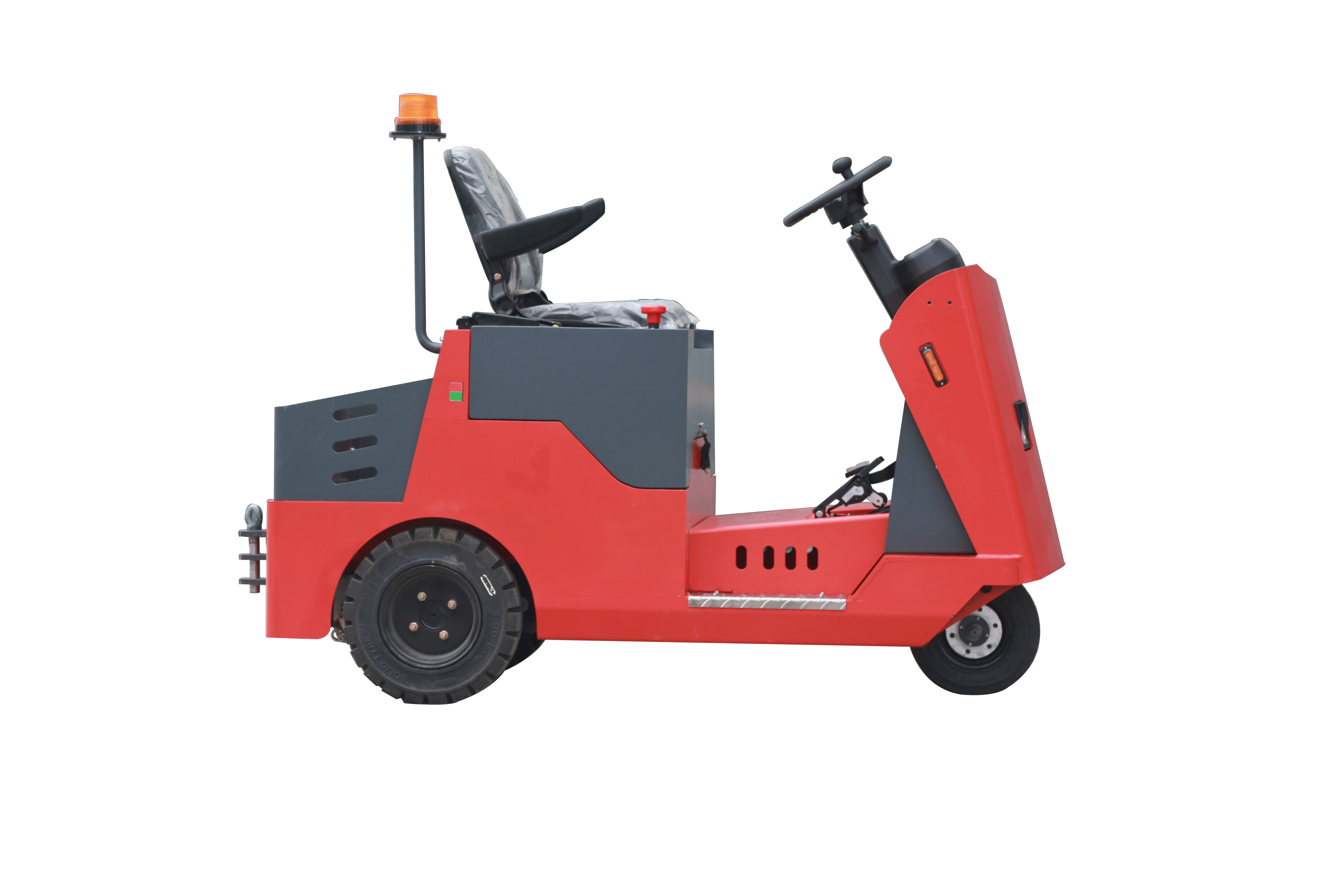

Vlift tow tractor with lead acid battery seat type - Z3
| Identification | 1.1 | Brand | VLIFT | |
| 1.2 | Product Model | Z3 | ||
| 1.3 | Power supply | Electric | ||
| 1.4 | Operating type | Sitting-on | ||
| 1.5 | Max traction weight | Q(kg) | 3000 | |
| 1.6 | Rated pulling force | F(N) | 1000 | |
| 1.7 | Wheelbase | y(mm) | 1217 | |
| Weight | 2.1 | Truck weight（with battery） | kg | 650 |
| 2.2 | Battery weight | kg | 136 | |
| Tyre | 3.1 | Tire type,Drive wheel/Supporting wheel | Rubber | |
| 3.2 | Sizes of drive wheel（diameter×width） | mm | Φ375×122 | |
| 3.3 | Sizes of bearing wheel（diameter×width） | mm | Φ300×90 | |
| 3.4 | Drive wheel/Supporting wheel number（×=Drive wheel） | mm | 2×/2 | |
| 3.5 | Front gauge | b10（mm） | 725 | |
| Dimensions | 4.1 | Overall height | h1（mm） | 1387 |
| 4.2 | Height of tiller in drive position | h2（mm） | 1150 | |
| 4.3 | Hook height | h3（mm） | 280/330 | |
| 4.4 | Overall length | l1（mm） | 1942 | |
| 4.5 | Overall width | b1（mm） | 860 | |
| 4.6 | Ground clearance | m1（mm） | 140 | |
| 4.7 | Turning radius | WA（mm） | 1108 | |
| Performance | 5.1 | Drive speed load/unload | km/h | 7.0/12.0 |
| 5.2 | Rated pulling force | N | 1000 | |
| 5.3 | Max pulling force | N | 3000 | |
| 5.4 | Max gradeability load/unload | % | 5/10 | |
| 5.5 | Brake type | Electromagnetic | ||
| Motor | 6.1 | Drive motor rating S2 60min | kw | 2.2 |
| 6.2 | Charger (external) | V/A | 24/30 | |
| 6.3 | Battery voltage/nominal capacity | V/Ah | 4×6/203 | |
| Others | 7.1 | Type of drive control | AC | |
| 7.2 | Steering type | Mechanics | ||
| 7.3 | Noise level | dB（A） | <70 | |
| 7.4 | Type of trailer coupling | Latch |
Efficient, Reliable, Comfortable, Durable
The Vlift tow tractor with lead acid battery seat type - Z3 offers unparalleled efficiency and convenience in transporting heavy loads with ease. Its durable build and ergonomic design ensure maximum comfort and safety for users. Experience effortless handling and power with this high-quality tow tractor.
● Efficient
● Reliable
● Ergonomic
● Durable
Product Display
Efficient, Versatile, Reliable, Comfortable
Efficient, Reliable, Compact, Powerful
The Vlift tow tractor with lead acid battery seat type - Z3 is a reliable and efficient solution for transporting heavy loads in industrial settings. With a sturdy build and powerful performance, it ensures smooth operation and high productivity. The ergonomic design of the seat provides comfort for the operator during long working hours, making it an essential asset for any warehouse or manufacturing facility.
◎ Powerful Motor
◎ Durable Construction
◎ Ergonomic Comfort
Application Scenario
Material Introduction
The Vlift tow tractor with lead acid battery seat type - Z3 is made with high-quality materials to ensure durability and reliability. The sturdy frame is constructed from heavy-duty steel, while the seat is made with comfortable and durable cushioning. The lead acid battery provides long-lasting power for extended use without compromising performance.
◎ Sturdy Metal Frame
◎ Ergonomic Seat
◎ Long-Lasting Lead Acid Battery
FAQ
