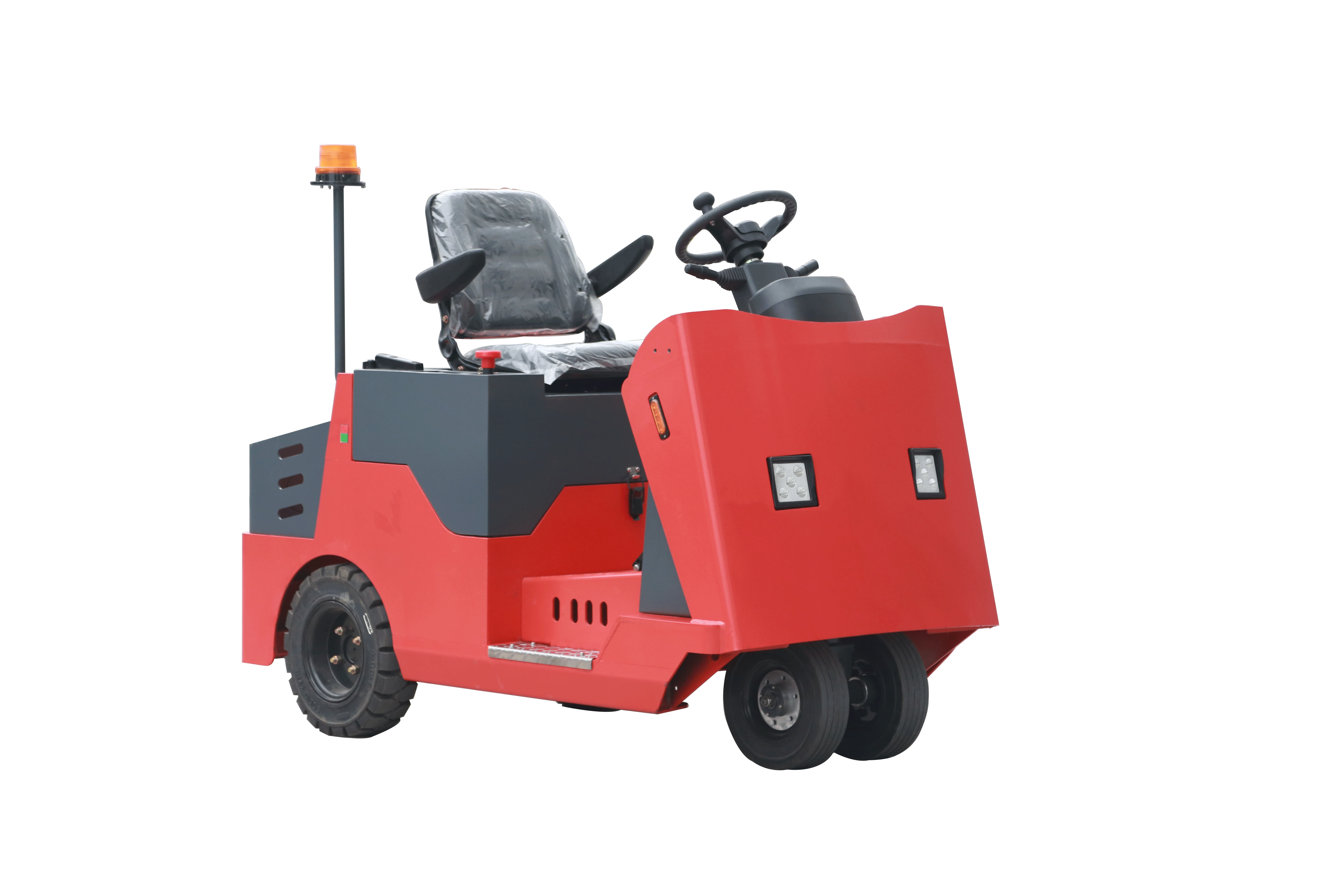

Vlift Tow Tractor with Lead Acid Battery Seat Type - Z4
| Identification | 1.1 | Brand | VLIFT | |
| 1.2 | Product Model | Z4 | ||
| 1.3 | Power supply | Electric | ||
| 1.4 | Operating type | Sitting-on | ||
| 1.5 | Max traction weight | Q(kg) | 4000 | |
| 1.6 | Rated pulling force | F(N) | 1500 | |
| 1.7 | Wheelbase | y(mm) | 1217 | |
| Weight | 2.1 | Truck weight（with battery） | kg | 780 |
| 2.2 | Battery weight | kg | 136 | |
| Tyre | 3.1 | Tire type,Drive wheel/Bearing wheel | Rubber | |
| 3.2 | Sizes of drive wheel（diameter×width） | mm | 400-8 | |
| 3.3 | Sizes of bearing wheel（diameter×width） | mm | Φ300×90 | |
| 3.4 | Drive wheel/bearing wheel number（×=Drive wheel） | mm | 2×/2 | |
| 3.5 | Front gauge | b10（mm） | 780 | |
| Dimensions | 4.1 | Overall height | h1（mm） | 1340 |
| 4.2 | Height of tiller in drive position | h2（mm） | 1150 | |
| 4.3 | Hook height | h3（mm） | 280/330 | |
| 4.4 | Overall length | l1（mm） | 1990 | |
| 4.5 | Overall width | b1（mm） | 900 | |
| 4.6 | Ground clearance | m1（mm） | 150 | |
| 4.7 | Turning radius | WA（mm） | 1150 | |
| Performance | 5.1 | Drive speed load/unload | km/h | 7.0/13.0 |
| 5.2 | Rated pulling force | N | 1500 | |
| 5.3 | Max pulling force | N | 4000 | |
| 5.4 | Max gradeability load/unload | % | 5/10 | |
| 5.5 | Brake type | Electromagnetic | ||
| Motor | 6.1 | Drive motor rating S2 60min | kw | 3.0 |
| 6.2 | Charger (external) | V/A | 24/30 | |
| 6.3 | Battery voltage/nominal capacity | V/Ah | 4×6/203 | |
| Others | 7.1 | Type of drive control | AC | |
| 7.2 | Steering type | Mechanics | ||
| 7.3 | Noise level | dB（A） | <70 | |
| 7.4 | Type of trailer coupling | Latch |
Efficient, Reliable, Comfortable, Stylish
The Vlift Tow Tractor with Lead Acid Battery Seat Type - Z4 offers reliable and efficient transportation of heavy loads in various industrial settings. With its comfortable seat design and durable build quality, this tow tractor ensures maximum productivity and Operator comfort. Its sleek design and advanced technology make it a valuable investment for businesses looking to streamline their operations.
● Efficient
● Comfortable
● Durable
● Reliable
Product Display
Efficient, Versatile, Reliable, Durable
Efficient, Reliable, Comfortable, Durable
The Vlift Tow Tractor with Lead Acid Battery Seat Type - Z4 is a reliable and durable towing solution with a comfortable seating option. Its core attributes include a powerful lead acid battery for long-lasting performance, while its extended attributes offer a user-friendly design for ease of operation. With its value attributes of efficiency and safety, this tow tractor functions effectively in various industrial environments, making it a versatile and dependable choice for transporting heavy loads.
◎ Versatile
◎ Reliable
◎ Comfortable
Application Scenario
Material Introduction
The Vlift Tow Tractor with Lead Acid Battery Seat Type - Z4 is constructed with a durable steel frame, providing strength and stability for heavy-duty towing tasks. The seat is made with high-quality leather upholstery for comfort during long hours of operation. This product also features a robust lead acid battery, ensuring reliable power for consistent performance.
◎ Frame
◎ Tires
◎ Seat
FAQ
